Ergonomic test kit E Series
pulling out forcemanualfor materials

Ergonomic test kit - E Series - Mark-10 - pulling out force / manual / for materials
Ergonomic test kit - E Series - Mark-10 - pulling out force / manual / for materials
Ergonomic test kit - E Series - Mark-10 - pulling out force / manual / for materials - image - 2
Ergonomic test kit - E Series - Mark-10 - pulling out force / manual / for materials - image - 3
Ergonomic test kit - E Series - Mark-10 - pulling out force / manual / for materials - image - 4
Ergonomic test kit - E Series - Mark-10 - pulling out force / manual / for materials - image - 5
Ergonomic test kit - E Series - Mark-10 - pulling out force / manual / for materials - image - 6
Ergonomic test kit - E Series - Mark-10 - pulling out force / manual / for materials - image - 7
Ergonomic test kit - E Series - Mark-10 - pulling out force / manual / for materials - image - 8
Ergonomic test kit - E Series - Mark-10 - pulling out force / manual / for materials - image - 9
Ergonomic test kit - E Series - Mark-10 - pulling out force / manual / for materials - image - 10
Add to favorites
Compare this product


Characteristics

Test type
pulling out force
Operating mode
manual
Test material
for materials
Sector
industrial
Technology
digital
Configuration
ergonomic
Other characteristics
rugged

Description

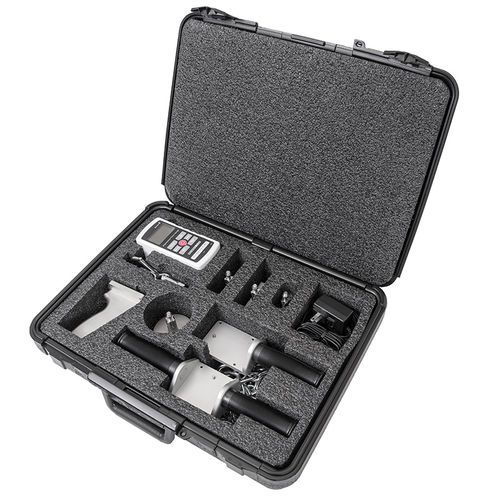

Series E push / pull force gauges make job task analysis and ergonomics analysis simple and accurate, ideal for workplace design, strength assessment, and ergonomic studies. Series E presents the ergonomist and other professionals with a simple and economical testing solution. 100 lbF, 200 lbF and 500 lbF (500, 2,500, and 5,000 N) capacity force gauges are available, along with a wide range of attachments for various applications. Select a pre-configured kit, including a gauge, accessories, and carrying case, or select each item individually to suit your needs. Attachments click and lock into place via innovative Click-Lock® technology, a rugged anti-rotation locking mechanism. The attachments may be clicked into 90° or 180° orientations. No fastening is required, as with conventional force gauges, thereby reducing the risk of damage to the instrument. • Measure real time and peak push and pull forces • Three measuring ranges: 100, 200, and 500 lbF (500, 1000, and 2,500 N) • Click-Lock® accessory mounting technology • USB data output • High / low limit indicators, for pass / fail and minimum force testing • Averaging mode calculates average force over a period of time • 5,000-point data memory - data points may be saved individually or logged continuously at up to 7,000 Hz. Data points may be bulk downloaded to included MESUR® Lite data collection software. • Statistical calculations for saved data points
