Ergonomic test kit EKM5 Series

pulling out forcemanualfor materials

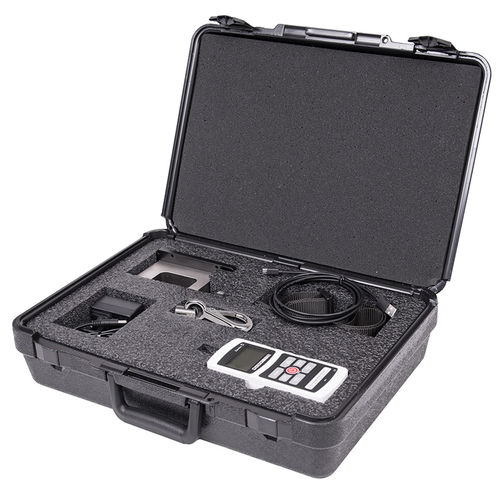

The Model EKM5-200 Myometer Kit facilitates a wide range of strength assessments and ergonomics studies. Featuring a Series 5 force gauge with 200 lbF (1,000 N) range, tabletop mount, strap, and accessories, this kit is ideal for ergonomists and other professionals. • Measures real time, average, and peak pull and push forces • 200 lbF (1,000 N) force capacity • Accuracy of ±0.1% of full scale • Sampling rate of 7,000 Hz • USB, RS-232, and analog outputs • High / low limit indicators, for pass / fail and minimum force testing • 1,000-point data memory with statistical calculations. Data may be bulk downloaded to included MESUR® Lite data collection software. • Force gauge is compatible with other Mark-10 grips and attachments • Accuracy: : ±0.1% of full scale • Sampling rate: : 7,000 Hz • Power: : AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low. • Battery life: : Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use • Capacity x Resolution: : 200 x 0.05 lbF, 3200 x 1 ozF, 100 x 0.02 kgF, 1000 x 0.2 N, 1 x 0.0002 kN • Outputs: : USB / RS-232: Configurable up to 115,200 baud. Automatic output available up to 250 Hz. Includes Gauge Control Language 2 for full computer control. Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible devices. Analog: ±1 VDC, ±0.25% of full scale at capacity General purpose: Three open drain outputs, one input. Set points: Three open drain lines.
