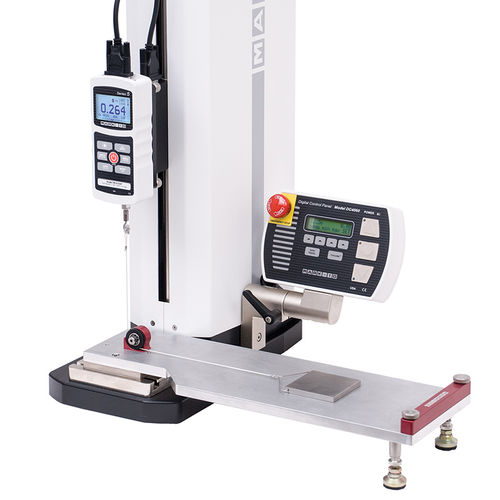

Friction coefficient test fixture G1086

The G1086 COF fixture is an integral part of a COF measurement system, typically including a motorized test stand and COF gauge. The G1086 can be used for a wide range of materials, ideal for conformance to ASTM D1894 and other relevant standards. Static and kinetic coefficients can be measured using the M5-2-COF gauge. The fixture includes a large work table with sample clamp, level, 200 g sled, cable, and low-friction pulley. The fixture is compatible with most Mark-10 motorized force testers (some models require an adapter; see Ordering Information). • Allows for static and kinetic COF measurements • Includes 200 g sled and sample clamp • Compatible with the following test frame models: F105, F305, F505, F755, F755S, ESM303. • Adapters available for other models (see Ordering Information) • Fixture + Gauge Kit is available (see Ordering Information) • Table surface material: 6061 T6 aluminum • Sled material: 303 SS • Maximum sled travel: 10.5 in (265 mm) • Weight: 7.4 lb [3.4 kg] • Shipping Weight: 10 lb [4.5 kg]
