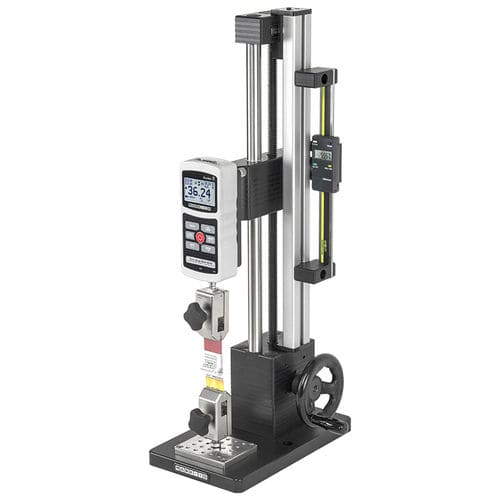

Compression test bench ES30

tensionmanualfor materials

The ES30 Force Measurement Test Stand is a versatile and economical solution for most compression and tensile testing applications. It can accept a wide variety of sample shapes and sizes and can be configured in many positions due to modular design. Precision hand wheel operation enables the user to easily and accurately test up to 200 lbF [1 kN] of force. Use the ES30 with any Mark-10 force gauge and grips to create a complete testing solution. • Compatible with all Mark-10 force gauges, accessories and grips. • Modular design: the entire base may be removed for alternative mounting. • Removable base plate with 25 #10-32 threaded holes for fixture mounting. • Competitor force gauge mounting kits available. • Maximum force: 200 lbF [1 kN] • Maximum travel: 13" [330 mm] • Travel rate: 0.05" [1.27 mm]/hand wheel revolution • Weight: 17 lb [7.7 kg] • Shipping weight: 23 lb [10.4 kg]
