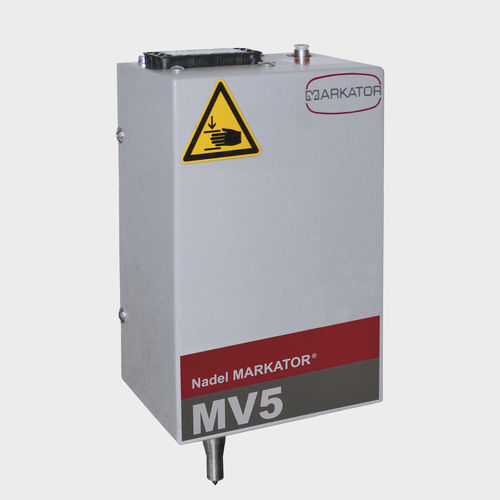

Dot peen marking machine MV5 U50/25
for integrationcompactpneumatic

Dot peen marking machine - MV5 U50/25 - MARKATOR Manfred Borries GmbH - for integration / compact / pneumatic
Dot peen marking machine - MV5 U50/25 - MARKATOR Manfred Borries GmbH - for integration / compact / pneumatic
Add to favorites
Compare this product


Characteristics

Technique
dot peen
Configuration
for integration, compact
Other characteristics
pneumatic
X travel

50 mm, 80 mm, 120 mm
(1.97 in, 3.15 in, 4.72 in)

Y travel

25 mm, 45 mm
(0.98 in, 1.77 in)

Description

The ideal application with low space requirements The compact dot peen marking machine MV5 U50/25 is used for permanent marking of all kinds of workpieces. The marking head is stably guided and can be used in combination with high-performance stepper motors in any position. The integration unit convinces with shortest marking times. The marking is done by a fast oscillating solid carbide marking pin. It is available in different sizes so that the marking can be customized for different materials. MODULAR DESIGN SYSTEM • Simple and space-saving integration into production, assembly and test facilities due to extremely compact design • Optimal customization options • High functionality by combining with various control systems RELIABLE • Especially high marking quality • High repetition accuracy • Extremely precise and distortion-free marking result due to optimum force transmission to the component to be marked • Stable mechanics through high-quality, double-guided linear guides in X and Y direction HIGH PERFORMANCE • High marking strength through pneumatic tool drive • Fast oscillating marking pin for precise line markings and fast marking times • The stylus for holding the marking pin is maintenance-free
