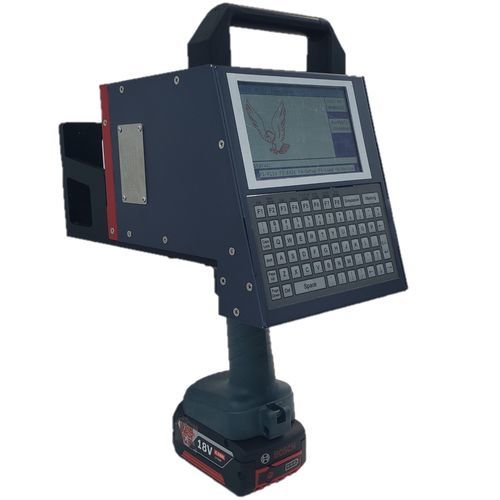

Dot peen marking machine MKP-064

plasticmetalhand-held

The MKP-064 is battery operated(Hand-held) portable marking system. MKP-064 marking machine is ideal for large fabrications and bulky, heavy and stationary parts on pallets. It supports actual marking to linear, angular and cylindrical surfaces. (No seperate optional program) You can even edit marking information with inbuilt keyboard and verify your variable data and setting to front built-in LCD. Any material can be marked from plastic and hardened steel upto HRC 62. No electric and pneumatic cable is needed whole marking process. Possible to do 40mins continuous marking without recharging by 2.0Ah battery standard. ◆◆ Specification ◆◆ ○ Model - MKP-064 ○ Dimension - 155 mm (W) X 317 mm (L) X 282 mm (H) ○ Marking area - 58 mm (X) X 40 mm (Y) ○ Weight(Including battery) - 2.9kg (3.2kg) ○ Available cha. height - 1.0 - - 40.0mm ○ Font - Standard 1 & 2, DOT font(Size 5x7) ○ Marking Pin - Electromagnetic marking pin ○ Stroke of marking pin. - Upto Max. 5mm (Constant marking depth) ○ Available Cha. - Figure, Capital letters, Lower case. Special cha. ○ Possible to create marking files on inbuilt keyboard and actual marking data appear to inbuilt screen. ○ Can save and load marking data via USB. It is possible to visualize the created marking file by preview function on front screen before the actual marking process.
