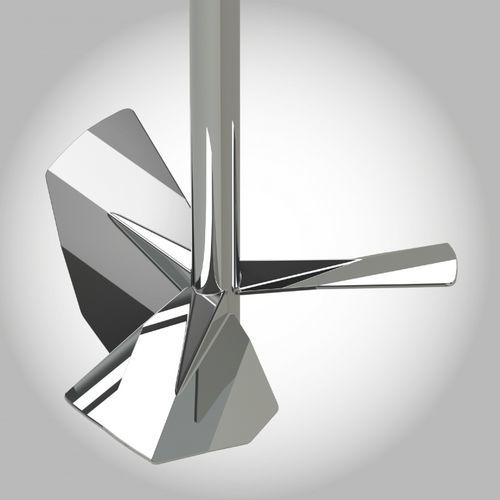

Dynamic mixing head AX1

The AX1 is made for homogenisation, suspension creation at low speed as well as heat transfer. It is the propeller with the largest manometric head, offering a low shear rate. PROPELLER DESIGN Definition basis: Profiled propeller with slim blades Number of blades: 3 Rotation direction: Clockwise or anticlockwise (according to the required flow) FLOW OF AX1 STIRRING DEVICES - USE Blown flow: Vertical from top to bottom (axial preponderance) Vortex creation A stirrer equipped with a blown AX1 can be mounted centred with counter-blades or offset without counter-blades. Low shear rate at max. speed (low peripheral speed) Risk of the introduction of gas into the mixture Applications: Mixtures, heat transfer, simple dissolution, creation of suspension and holding in suspension. Suction flow: Vertical from bottom to top (axial preponderance) Bubbling on a liquid surface A stirrer equipped with a suction AX1 can be mounted centred with counter-blades or offset without counter-blades. Applications: Mixtures, foaming product mixtures, heat transfer, simple dissolution, creation of suspension and holding in suspension. PRODUCT USED IN THE FOLLOWING MARKETS: Pharmaceuticals Food industry Cosmetics and perfumery Fine chemicals Biotechnology
