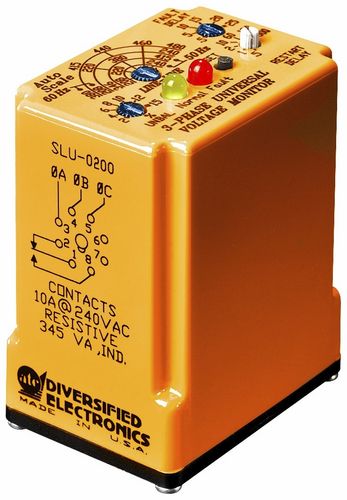

Voltage monitoring relay SLU-0200 seriesfrequencythree-phase
Add to favorites
Compare this product
Characteristics
- Measured/monitored value
- voltage, frequency
- Network
- three-phase
- Trigger voltage
Max.: 500 V
Min.: 200 V
Description
The SLU-0200 Monitor transmissions (3 phase) offer an affordable safety from premature tool errors, downtime due to voltage errors or abrupt outages on 3-Phase systems (Wye or Delta).
It consists of instant cycle lockout and this unit can be easily modified for voltage, fluctuating ratio and time hampering needs for safety against irregular voltages, one phasing in spite of recreative voltages. Additionally, this unit is meant for noisy habitats and are ideal for almost all generator type operations. The special functions of SLU-0200 consist of auto-ranging plates (200-500v 3 phase),modifiable restart hampering, automatic reset and instant cycle lockout. The DELTA and WYE systems can be examined while the Wye systems need no attachments to neutral.
However, the SLU-0200 Monitor transmissions are not ideal for changeable frequency drive applications.
