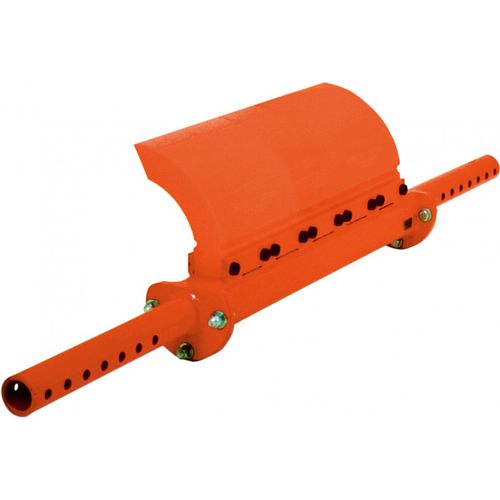

Conveyor belt pre-cleaner 24" - 96" | ZHD

Martin® ZHD belt cleaner / belt scraper combines urethane blade segments to form effective primary cleaner in pre-cleaner position on face of head pulley. Features and Benefits: Installed on the face of the head pulley, the Martin® ZHD Conveyor Belt Cleaner flexes under tension to provide effective belt cleaning and overcome uneven blade wear. Narrow blade segments individually flexed against the belt for steady blade-to-belt pressure and high-performance cleaning. Springs molded inside each blade maintain cleaning pressure - even on mid-belt blades facing the greatest wear. With a spring matched to belt width, the Spring Link Tensioner provides consistent conveyor belt cleaning without extra adjustments over life of the blade. Martin Engineering's exclusive Maximizer Cleaner Urethane provides extended service. Each blade is secured with two nylon locking pins. To replace worn blades, pound out the old pins, replace the blade and hammer in new pins. Applications: The ZHD Conveyor Belt Cleaner is suited for super heavy-duty applications, on belts from 24 to 96 inches (~500 to 2400 mm) operating at speeds up to 1200 fpm (6.1 m/sec).
