Description

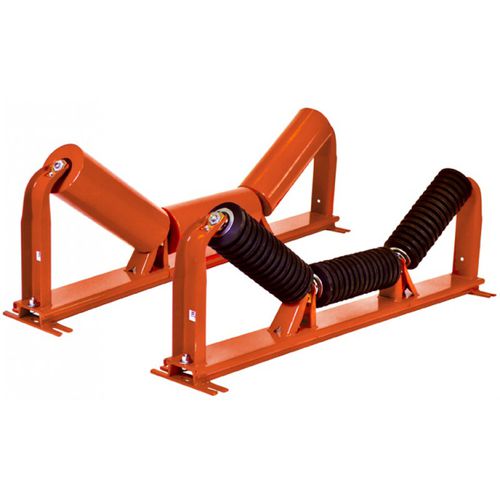

Martin® Trac-Mount™ Idlers utilize sliding frames on a stationary base to provide an idler set that will fit in tight spaces between belt support cradles and allows easy installation and service. Trac-Mount™ Idlers are available with standard or wide base frames and utilize impact or steel rolls in CEMA class A, B, C, D, or E. Features and Benefits: Allows Close Spacing Slide-in frames need only eight inches (203 mm) of width for 6-inch (152 mm) rolls. Improves System Serviceability Slide-out/slide-in roller frames allows idler service without need to raise belt or remove adjacent idlers. Prevents Fugitive Material Trac-Mount™ Idlers provide proper belt carriage while they stabilize the belt line to improve sealing. PPI Rolls Now Standard Assemblies are supplied with steel or impact rolls from Precision Pulley and Idler. CUSTOM ENGINEERING Martin Engineering can custom-design Martin® Trac-Mount™ Idlers to meet unique application requirements. Options include steel construction, frames with adjustable angle, rolls from alternative suppliers, or other special needs. Discuss your application with a Martin Engineering representative.
