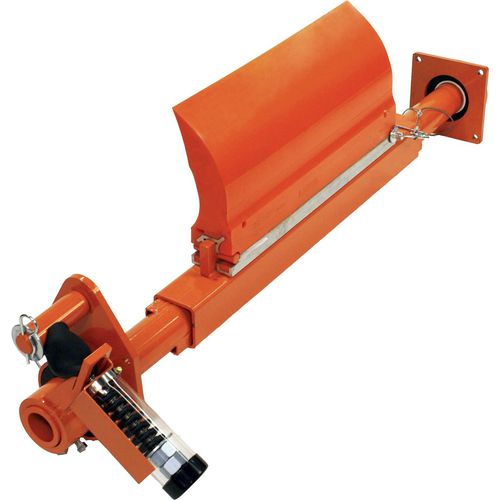

Conveyor belt pre-cleaner QC1™ HD Max

conveyor belt pre-cleaner
conveyor belt pre-cleaner
conveyor belt pre-cleaner
Add to favorites
Compare this product


Description

The Martin® QC1™ Cleaner HD Max has a sturdy urethane blade that provides effective removal of material from belt conveyors handling coal, ore or other bulk materials. Features and Benefits: • Unique blade profile means the blade maintains the most efficient cleaning angle across the extended wear life • Three-piece mainframe for easy installation • Durable and rugged Martin® Spring Tensioner XHD maintains cleaning pressure Applications: • Suited for belt widths from 24-84 in. (600-2130 mm), operating at belt speeds up to 1000 fpm (6 m/sec) • Designed for head pulley diameters from 18-30 in. (450-800 mm), best on 24-30 in. (600-760 mm) • QC1™ HD Max blades are available in 6- or 12-inches less than belt width • The QC1™ Cleaner HD Max uses common mounting dimensions for ease in retrofit or upgrade Options: • Martin Engineering’s color-coded high performance urethanes available to suit application • Optional segmented blade Our technicians and engineers are available to provide expert advice and assistance on this product and all of your bulk material handling questions and problems. Please contact us today and let us help!
