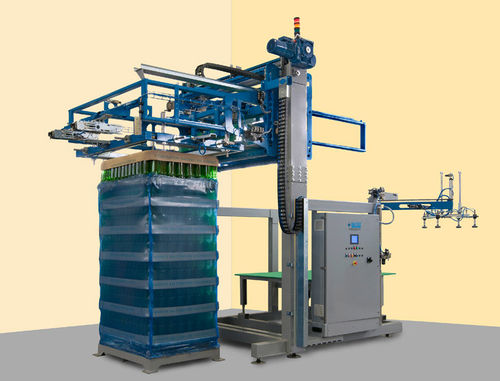

Layer depalletizer TATO SWEEP 20

for glass containersbottlesemi-automatic

Depalletizer with layer push system, for the processing of bottles, glass jars, tin-plated aluminium cans of cylindrical or rectangular shape. The characteristic of the pallet to be depalletized is to have plastic or rigid cardboard pads. The machine, with semiautomatic control, or fully automated with the necessary accessories, is a model suitable for bottling lines with production capacities up to 250 containers/minute. Machine suitable in case of frequent format changes since it does not need any additional equipments and the height parameters of the product are input through a touch screen display. The working system is with stationary pallet with a self-levelling depalletizing unit, solid support framework with two columns with counterweights. The presence of the operator is requested only for the functions of positioning and removal of the pallets, removal of the top frames and the pads between the layers, while the pick up of the layers, theirs transfer towards to the evacuation storage unit the laying down on it are performed automatically through impulses given with a button, leaving the operator the time to perform other tasks. All movements are mechanical, motorized, and controlled through inverter for precise and soft starts and stops.
