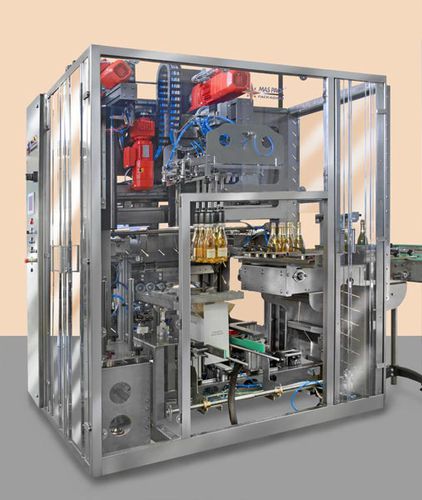

Vertical case packer ACCUPACK 20-M

pick-and-placeautomaticfor glass bottles

Machine suitable for taking bottles or containers accumulated according to a predetermined conformation and their introduction into cardboard boxes or plastic baskets. Single-column structure on which the head-holder arm performs motorized movements to pick up and place the bottles in the cartons. Container gripping head suitable, with the appropriate accessories, for the treatment of: 1 carton of 12 bottles at a time, 2 cartons of 6 bottles at a time. All movements are on high precision sliding parts. Product accumulation conveyor with multiple parallel chains with low friction coefficient, complete with adjustable bottle guide sides. A carton centering unit keeps the flaps open to facilitate perfect introduction into the containers without damaging the labels. Optional: Device for sorting bottles from 1 to 3 rows, with relative conveyor equipped with chains with a low coefficient of friction, to optimize the composition of the conformations of the bottles to be processed. Handwheel adjustable multi-format gripping head.
