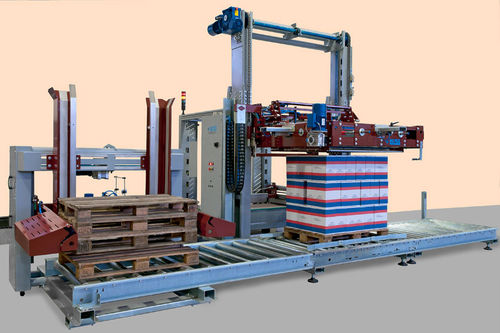

Layer palletizer JOLLYPAL 20-12

casefor cardboard boxesautomatic

Machine suitable for the palletizing of cartons or cases in layers at crossed planes and not with processing from the bottom. Solid and sturdy portal framework in painted steel. Horizontal and vertical movements of the machine controlled by inverter for precise and soft starts and stops. Pneumo-mechanical contrast system positioned on the transport of the cartons arriving in a position need being turned. Motorized transport on board of the machine where the configuration of the layers in made row by row with the possibility of creating, if necessary, spaces through the step by step system. The descent and lifting movements of the gripping head are guided and solidly stabilized by devices on the side of the chariot equipped with rollers sliding on wide-section guides of hardened steel, fixed inside the columns building the main framework of the machine. The palletizing head is equipped with adjustable compactors for the squaring of every single layer before and during the laying-down. Touch Screen for the creation and modification of palletizing program directly from the machine.
