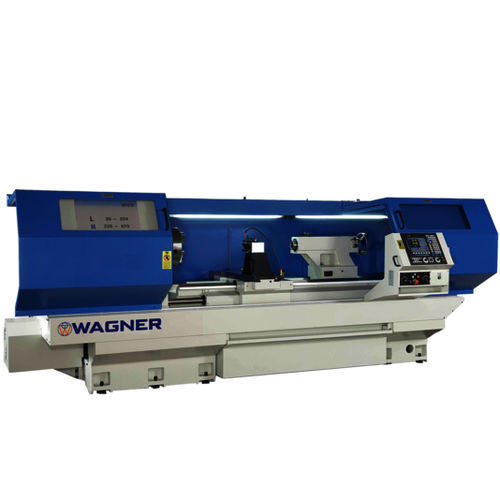

CNC lathe WDC serieshorizontal2-axisflatbed
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- horizontal
- Number of axes
- 2-axis
- Structure
- flatbed
- Diameter
Min.: 0 mm
(0 in)Max.: 610 mm
(24.02 in)- Spindle speed
Min.: 12 rpm
(75.398 rad.min-1)Max.: 3,500 rpm
(21,991.149 rad.min-1)- Bar capacity
54 mm, 80 mm, 104 mm, 105 mm
(2 in, 3 in, 4 in, 4 in)- Rapids on X
5,000 mm/min, 10,000 mm/min
(3 in/s, 7 in/s)- Rapids on Z
7,000 mm/min, 9,000 mm/min
(5 in/s, 6 in/s)- Nominal power
5.5 kW, 7 kW, 7.5 kW, 11 kW, 15 kW
(7.5 hp, 9.5 hp, 10.2 hp, 15 hp, 20.4 hp)
Description
- Standard part processing
- Massive cast iron beds on feet
- Turning diameter from: 390- 760mm
- Top width of: 1,000 - 4,000mm
- H - design
