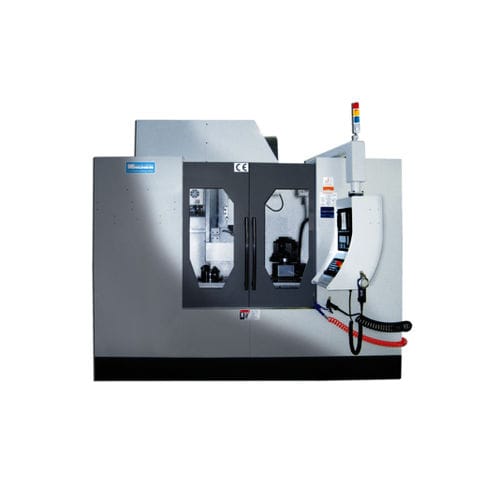

5-axis CNC machining center WMC 1100 B4-axisverticalSK40
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis, 4-axis
- Spindle orientation
- vertical
- Spindle mount
- SK40
- Number of tool stations
- 30 tools
- Other characteristics
- rigid, with linear motor
- X travel
1,100 mm
(43.31 in)- Y travel
600 mm
(23.62 in)- Z travel
830 mm
(32.68 in)- Rotational speed
Max.: 12,000 rpm
(75,398 rad.min-1)Min.: 80 rpm
(503 rad.min-1)- Work feed X-axis
36,000 mm/min
(24 in/s)- Work feed Y-axis
36,000 mm/min
(24 in/s)- Work feed Z-axis
18,000 mm/min
(12 in/s)- Table load capacity
800 kg
(1,764 lb)- Tool weight (max)
7 kg
(15.4 lb)- Positioning accuracy
0.014 mm
(0.00055 in)- Repeatability
0.01 mm
(0.00039 in)- Tool-changing time
2.4 s
- Weight
7,300 kg
(16,093.75 lb)- Overall length
3,684 mm
(145 in)- Overall width
2,700 mm
(106.3 in)- Overall height
3,300 mm
(129.9 in)
Description
- The milling head is the 4th axis (B axis), linearly guided 5-axis machining center
- C-axis on the table 350/400 / 500mm diameter also as A-axis optionally with tailstock
- Z axis nose table 850mm path 830mm
