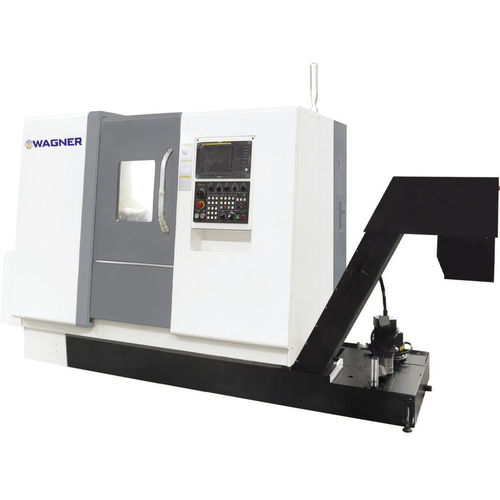

CNC lathe WDS 650 A serieshorizontal3-axisinclined bed
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- horizontal
- Number of axes
- 3-axis
- Structure
- inclined bed
- Spindle mount
- A2-8, FL 140
- Number of tool stations
- 12 tools
- Other characteristics
- Y-axis
- Diameter
650 mm
(25.59 in)- Spindle speed
Min.: 0 rpm
(0 rad.min-1)Max.: 4,000 rpm
(25,132.741 rad.min-1)- Part diameter
400 mm
(16 in)- Maximum part length
500 mm
(20 in)- Bar capacity
87 mm
(3 in)- Axe X
240 mm
(9 in)- Axe Z
600 mm
(24 in)- Rapids on X
30,000 mm/min
(20 in/s)- Rapids on Z
30,000 mm/min
(20 in/s)- Nominal power
19 kW
(25.8 hp)- Overall lenght
3,870 mm
(152 in)- Overall width
2,000 mm
(79 in)- Overall height
2,000 mm
(79 in)- Weight
6,000 kg
(13,228 lb)
Description
- Driven tools
- passage in the draw tube 65mm (75mm with FL 170)
- Hydraulic chuck and tailstock package
- Y-axis 90 degrees
- counter spindle
