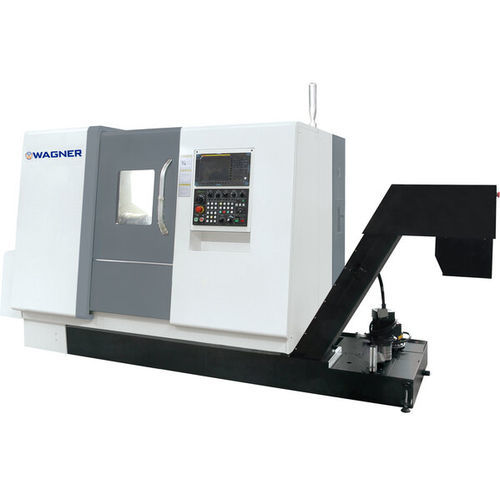

CNC lathe WDS 680 A series horizontal3-axisinclined bed
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- horizontal
- Number of axes
- 3-axis
- Structure
- inclined bed
- Spindle mount
- A2-6
- Number of tool stations
- 12 tools
- Other characteristics
- compact, Y-axis
- Options and accessories
- with linear motor
- Diameter
680 mm
(26.77 in)- Spindle speed
4,000 rpm
(25,132.741 rad.min-1)- Maximum part length
1,000 mm
(39 in)- Bar capacity
87 mm, 102 mm
(3 in, 4 in)- Axe X
285 mm
(11 in)- Axe Z
1,050 mm
(41 in)- Rapids on X
30,000 mm/min
(20 in/s)- Rapids on Z
30,000 mm/min
(20 in/s)- Nominal power
15 kW, 19 kW
(20.4 hp, 25.8 hp)- Overall lenght
5,150 mm
(203 in)- Overall width
2,000 mm
(79 in)- Overall height
2,050 mm
(81 in)- Weight
7,800 kg
(17,196 lb)
Description
- Driven tools
- Hydraulic chuck and tailstock package
- counter spindle
