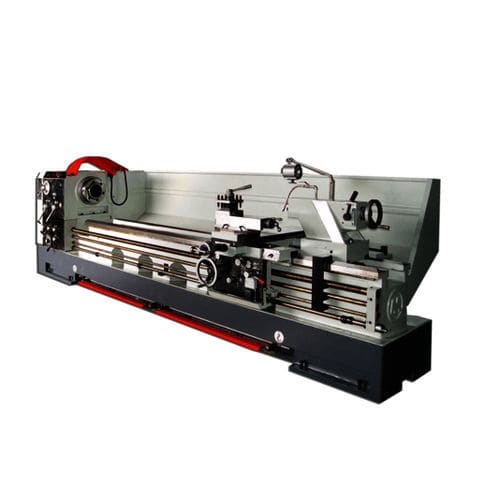

Conventional lathe WDR serieshorizontalpowerfulcompact
Add to favorites
Compare this product
Characteristics
- Control type
- conventional
- Spindle orientation
- horizontal
- Performance
- powerful
- Other characteristics
- compact
- Diameter
640 mm, 740 mm
(25.2 in, 29.13 in)- Spindle speed
Max.: 1,000 rpm
(6,283.185 rad.min-1)Min.: 12 rpm
(75.398 rad.min-1)- Maximum part length
210 mm
(8 in)- Bar capacity
105 mm
(4 in)- Nominal power
12 kW, 15 kW, 22 kW
(16.3 hp, 20.4 hp, 29.9 hp)- Overall lenght
2,700 mm, 11,700 mm
(106 in, 461 in)- Overall width
1,250 mm
(49 in)- Overall height
1,500 mm, 1,550 mm
(59 in, 61 in)- Weight
Max.: 11,900 kg
(26,235 lb)Min.: 3,300 kg
(7,275 lb)
Description
- Engine spindle brake
- Fixed stops
- Strong tailstock with quick clamping
- Tailstock with quill feed 1: 1 or 1: 4
- Hydraulic chuck (optional)
