Belt conveyor Versaflex series
chaintable top chainslat chain

Belt conveyor - Versaflex series - Maschinenbau Kitz GmbH - chain / table top chain / slat chain
Belt conveyor - Versaflex series - Maschinenbau Kitz GmbH - chain / table top chain / slat chain
Belt conveyor - Versaflex series - Maschinenbau Kitz GmbH - chain / table top chain / slat chain - image - 2
Belt conveyor - Versaflex series - Maschinenbau Kitz GmbH - chain / table top chain / slat chain - image - 3
Belt conveyor - Versaflex series - Maschinenbau Kitz GmbH - chain / table top chain / slat chain - image - 4
Add to favorites
Compare this product


Characteristics

Technology
belt, chain, table top chain, slat chain
Form
horizontal, vertical, inclined, straight
Function
transport, handling, accumulation, lifting, transfer
Construction
modular, compact, extendable, mobile, height-adjustable, stationary, multi-track, single file
Drive mechanism
automatic
Transported product
for pallet, for boxes, for bottle packs, for plates, food, package, for bottles, for battery, cans, for profiles, for containers, sheet metal, solids, for packaging, for cans, for waste, for automatic machines, workpiece, for cardboard boxes, for parcel
Applications
for process applications
Sector
for the pharmaceutical industry, for the recycling industry, for the automotive industry, for the metallurgical industry, for the aeronautical industry, for assembly lines, medical, for logistics, assembly line, for assembly, for packaging lines
Other characteristics
aluminum
Maximum load

Max.: 200 kg
(440.925 lb)

Min.: 0.1 kg
(0.22 lb)

Speed

Max.: 50,000 mm/min
(32.81 in/s)

Min.: 0 mm/min
(0 in/s)

Description

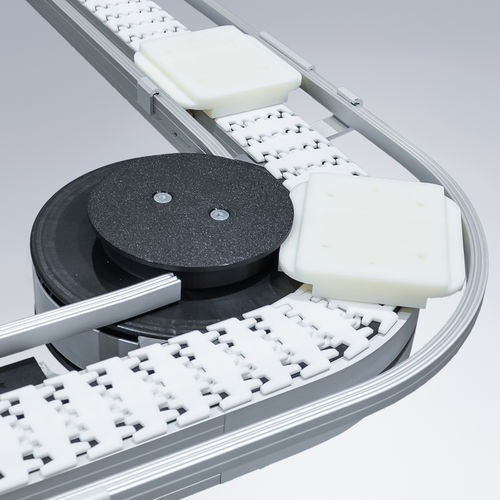

Versaflex Flat Top Chain Conveyor System The fully modular and standardized Versaflex flat top chain conveyor system is ideal for complex track designs within a three dimensional space. The different chain widths allow a fast configuration and a problem-free design of the system, alternatively also with workpiece carriers. The flat top chain conveyor system Versaflex, formerly the plastic chain conveyor of the E-M-M-A GmbH, features a modular design. The standardized modules and components make it simple and cost effective to integrate the system into any production process, as well as to adapt and expand it. Versaflex is a conveyor system that grows with your requirements. Moreover, it is compatible with systems that are currently available on the market and is being used very successfully in all areas of industry. Most notable for the transport of primary and secondary-packaged products from, among others, the food, pharmaceutical, chemical or consumer goods industry, but also for the transport of workpiece carriers in assembly lines e.g. of the automotive industry and for the linking of machines in the manufacturing industry the System optimally suited.
