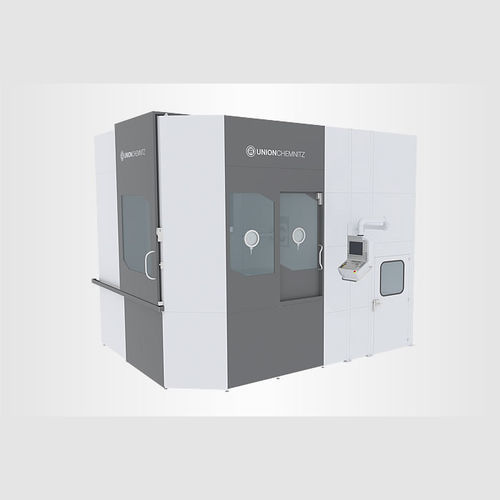

CNC boring mill TM 125

universaltable type3-axis

Foundation-free compact boring mill for the effective and cost-efficient machining of workpieces up to 10 t with a set-up area of up to 2,500 x 2,000 x 1,600 mm. It combines the advantages of a table-type boring mill with those of a compact machining center. Classification T Table-type M Monolith™ bed Your advantages at a glance Long travel range and large degrees of freedom for machining Inherently rigid, vibration-damping machine bed in Monolith™ design Strongly ribbed, torsionally rigid column Compact precision roller guideways for highest machining accuracy Speeds of up to 6,000 min-1; power of up to 34 kW Comprehensive equipment for high flexibility Working area that is easy to access Monolith™ machine bed in sandwich design with a welded, strongly ribbed upper section, fiber-reinforced high-performance concrete and a steel floor panel with special damping elements. Developed and implemented successfully in roll grinding machines hundreds of times by the sister company Maschinenfabrik Herkules: Torsionally rigid and thermostable Effective damping of vibrations Set-up directly on the floor and small footprint Extremely stiff, welded steel column Strong inner ribbing that prevents bending and torsional deformation Preloaded linear compact roller guides and spaciously dimensioned, preloaded ball screw drives Headstock and boring spindle Produced in-house to ensure highest quality Low wear and high machining quality Rotary clamping table Precise and backlash-free positioning of the workpieces
