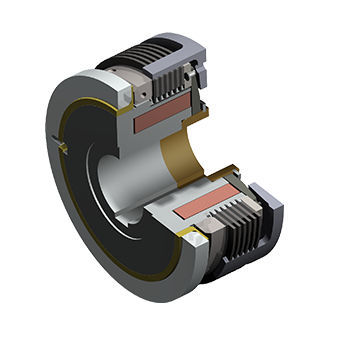

Multiple-disc clutch 522 electromagnetic
Add to favorites
Compare this product
Characteristics
- Type
- multiple-disc
- Operation
- electromagnetic
- Torque
Max.: 4,500 Nm
(3,319.0297 ft.lb)Min.: 60 Nm
(44.2537 ft.lb)- Rotational speed
Max.: 3,000 rpm
(18,849.56 rad.min-1)Min.: 750 rpm
(4,712.39 rad.min-1)- Power
Max.: 120 W
Min.: 35 W
Description
high torque transfer despite compact dimensions
special solutions on request
suitable for torque transmission with increasing differential speed between the drive elements
high switching frequency due to optimized heat dissipation
negligible wear due to special friction lining
suitable for applications in harsh environments
reduced shift speeds due to adapted control
