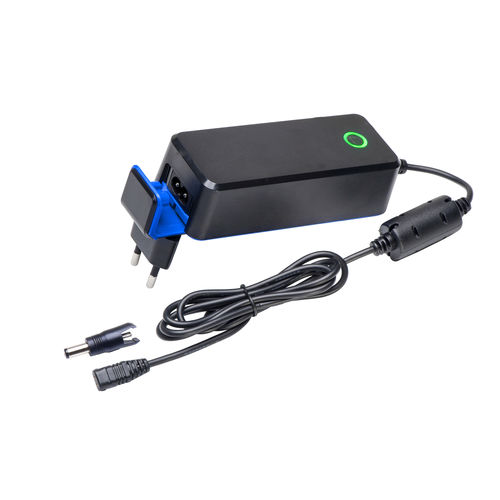

Mobile battery charger 3546

Ni-MH

Optimized battery performance and lifetime by: - Robust -dV sensitivity detection - Low cell temperature at end of fast charge - Top-off charge makes sure all cells are fully charged and balanced - Safety indication and protection: against reverse polarity, short circuit, charging battery packs with the wrong number of cells and safety timer run-out Approvals: - Household safety, EN 60335-1 & -2-29 - Medically certified Safety: EN 60601-1 ed. 3.1 Home healthcare EN 60601-1-11 EMC: EN 60601-1-2 ed. 4 - UL approved Custom specifications on request: Charging parameters, connectors, cords, logo print, housing/open frame/IP rating and certificates. For more information: custom design info sheet Configurable battery charger (CBC) The CBC module offers a range of custom charge parameter settings, including: dV, dT/dt, 0 dV, Timer, Safety timer, dV threshold, temperature gradient adjustment. The CBC is also configurable in field. For more information, see CBC data sheet
