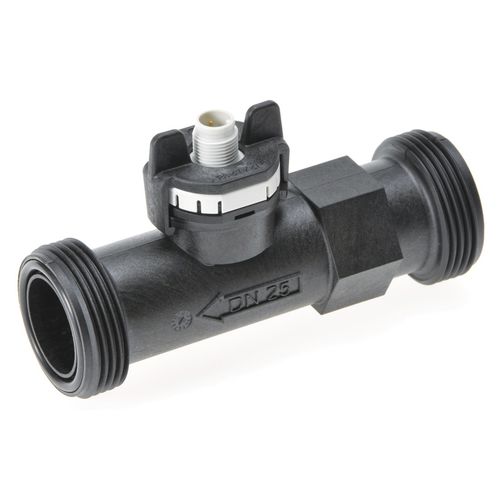

Vortex flow meter LVB-06-A

for liquidsfor waterin-line

Low-Flow Vortex Flowmeter for Liquids Fast response Compact, light-weight, cost-effective construction No moving parts; maintenance free Low pressure drop IP65 construction Features No moving parts makes it: - impervious to deposits - maintenance free Low pressure drop Mounting in any position Wide flow ranges Fast response Suitable for dirty water (circulating, well or waste water) Sustainable product design - Low power consumption - Lightweight and compact Applications The fields of application for this vortex liquid flow meter are diverse: Cooling water monitor Deionized water (RO/DI skids) Ultra pure water distribution (medicare, biotech, semiconductor, pharmaceutical) Drinking water Measurement / control system Medium Water and water like liquids. (cooling, well, waste, pure, drinking, heating and tap water) This product is NOT compatible with flammable, corrosive or toxic liquids. Medium Temperature <+125°C Rangeability Up to 1:20 Response time (sensor) Signal delay: < 2 s Response time: < 500 ms Mechanical parts Test pressure 18 bar(a) at +40°C Process connections G1/2 Weight 0.10 kg Electrical properties Power supply 8..33Vdc Load <(Uin-8V) / 20mA Electrical protection measures Short circuit, reverse voltage and external voltage protected within the admissible supply voltage Drinking water approval KTW / W270 / WRAS / ACS EMC EN 61326-2-3 Electrical connection M12 x 1
