No moving parts (no mechanical wear)
Interference free operation
Independence to inlet/outlet pipework
Fast response
Free pipe cross section: low ΔP, insensitive to contamination
Features
Makes liquid flows visible by
Blinking LED (red/green)
No mechanical wear
No moving parts
Ease of mounting and operation
Mounting in any position
Free pipe cross section
No additional pressure drop
Fast response (<500 ms)
Insensitive with contaminated liquids
Ideal solution for interference free operation combined with a long-life cycle
Can be used in areas where flow sensors with moving parts cannot be applied
Wide independence to the inlet and outlet pipe creates the advantage to be able to install in compact machines with cramped confines
Applications

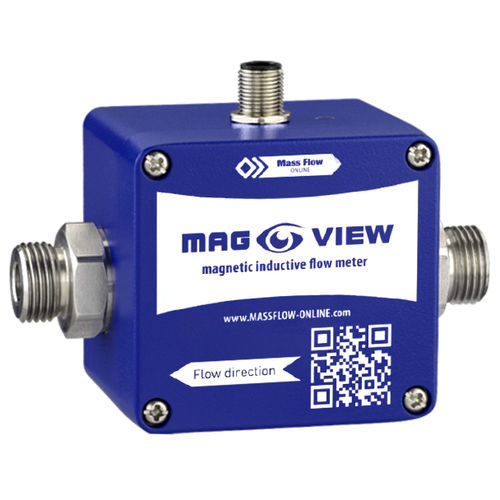

The fields of application for this magnetic flow meter are diverse:
Can be used in areas where flow sensors with moving parts (paddle wheel, turbine sensors) cannot be applied due to contaminated media
Sensor is intended for continuously measuring of flow rates or for dosing / batching of electrically conductive liquids with a minimum of 50µS/cm
Water distribution
Chemical feed
Electrical properties
Max. power consumption
max. 150 mA
Analog output
Pulse rate / K-factor : 100 pulses/l
Resolution : 10 ml/pulse
Signal shape : Push-Pull
Signal shape
Square wave signal, pulse duty ratio 50:50, Push-Pull
Signal current
max. 100 mA, current limited
Pin assignment
PIN 1: +UB
PIN 2: analog output 4..20mA
PIN 3: GND
PIN 4: frequency output
PIN 5: do not connect
