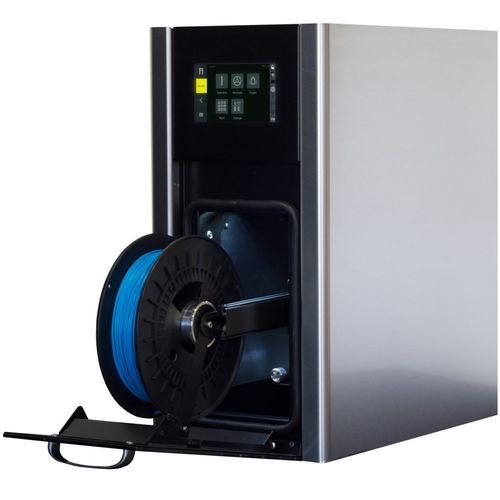

Filament dryer FD series

Many polymers absorb moisture from the ambient atmosphere. As the water molecule is polar, it can easily form hydrogen bonds with polar functional groups in polymers. First, moisture condenses at the filament surface (so-called surface moisture), but after some time moisture will also penetrate inside the material (so-called bulk moisture). Both moisture types have a tremendous negative effect on the processing of the most polymer materials when water reacts with polymer molecules and breaks them into smaller ones (hydrolysis) - Rotary desiccant renewal - Direct feeding - Advanced software - Touchscreen interface - Compact desktop Dryer size and weight Dimensions (w x d x h): 240 mm x 430 mm x 490 mm Weight: 18 kg Shipping dimensions (w x d x h): 320 mm x 510 mm x 570 mm Shipping weight: 25 kg Sensors Temperature: yes Humidity: yes Air pressure: yes Ambient conditions Operating ambient temperature: 15-35 °C, 10-90 % RH Software Supplied software: FabControl® (printing, drying profile management software) FabControl® OS (device control software) Automation ready: yes (software interface) Connectivity USB 2.0 and Ethernet jacks, Wi-Fi
