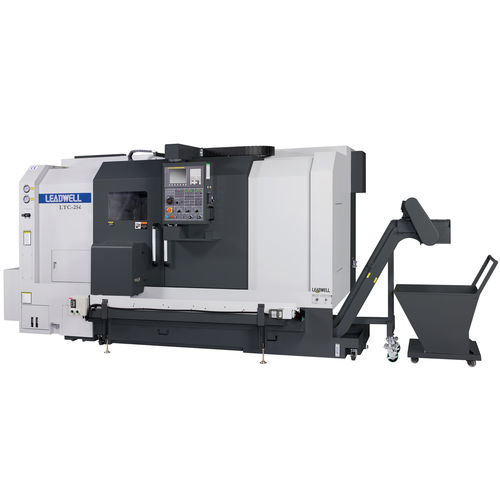

CNC turning center LTC series 2-axisA2-6heavy-duty
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Spindle mount
- A2-6
- Applications
- heavy-duty
- Diameter
320 mm
(12.6 in)- Spindle speed
4,000 rpm
(25,132.741 rad.min-1)- Bar capacity
65 mm
(3 in)- Axe X
160 mm
(6 in)- Axe Z
540 mm
(21 in)- Rapids on X
20,000 mm/min
(13 in/s)- Rapids on Z
20,000 mm/min
(13 in/s)- Overall lenght
2,665 mm
(105 in)- Overall width
1,590 mm
(63 in)- Overall height
1,590 mm
(63 in)- Weight
3,700 kg
(8,157 lb)
Description
Max. swing - mm(in) - 450 (17.7)
Max. turning length - mm(in) - 500 (19.6)
Chuck size - mm(in) - 203(8)
Number of tool stations - pcs - 8
Shank height for square tool - mm(in) - 25(1)
Shank diameter of boring bar - mm(in) - 40 (1.5)
X axis motor - kw(hp) - 1.8 (2.4)
Z axis motor - kw (hp) - 1.8 (2.4)
