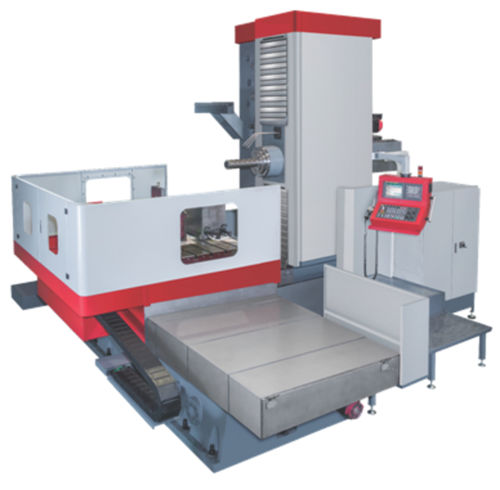

CNC boring mill UBM-1 series
horizontal4-axisautomatic

CNC boring mill
CNC boring mill
Add to favorites
Compare this product


Characteristics

Control type
CNC
Spindle orientation
horizontal
Number of axes
4-axis
Other characteristics
automatic, hydraulic
X travel

2,000 mm
(78.74 in)

Y travel

1,500 mm, 1,800 mm
(59.06 in, 70.87 in)

Z travel

1,400 mm
(55.12 in)

W travel (spindle)

400 mm, 500 mm
(16 in, 20 in)

Spindle diameter

110 mm
(4 in)

Power

15 kW, 18.5 kW, 22 kW, 26 kW
(20.39432 hp, 25.15299 hp, 29.91167 hp, 35.35015 hp)

Description

STANDARD ACCESSORIES: Linear scales on X,Y,Z axes, Spindle oil cooler Automatic power off , Hydraulic system Coolant system, Lubricator system Alarm lamp, Work lamp M.P.G., RS232 interface Heat exchanger, Chip conveyor and cart Leveling bolts and pads, Controller manuals and circuit diagram Operation manuals, Machine inspection lists Splash guards (around the table), Tool box OPTIONAL ACCESSORIES: ATC: 60 tools, Oil mist device FANUC controls, Various auxiliary work tables Air conditioner for electrical cabinet, Coolant through spindle Extension sleeve250mm/300mm 1800x1600x0.001Deg. 10 ton rotary table Manual 90Deg. angular milling head Simultaneously controlled rotary table
