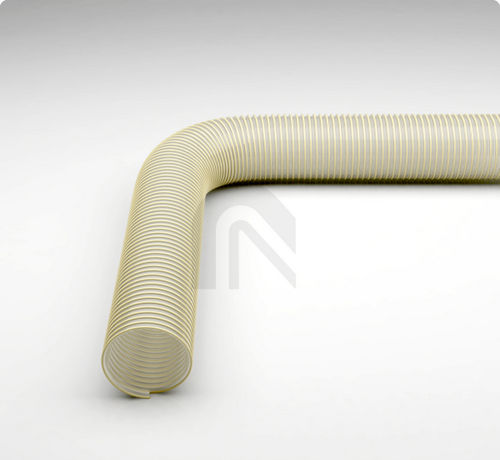

Transport hose Master-PUR HX Trivolution
for bulk materialsfor abrasive productspolyurethane

Transport hose - Master-PUR HX Trivolution - Masterflex SE - for bulk materials / for abrasive products / polyurethane
Transport hose - Master-PUR HX Trivolution - Masterflex SE - for bulk materials / for abrasive products / polyurethane
Transport hose - Master-PUR HX Trivolution - Masterflex SE - for bulk materials / for abrasive products / polyurethane - image - 2
Transport hose - Master-PUR HX Trivolution - Masterflex SE - for bulk materials / for abrasive products / polyurethane - image - 3
Transport hose - Master-PUR HX Trivolution - Masterflex SE - for bulk materials / for abrasive products / polyurethane - image - 4
Add to favorites
Compare this product


Characteristics

Use
for bulk materials, for abrasive products
Material
polyurethane, PU
Applications
construction, suction, for the paper industry, for the plastics industry, transport, cleaning, chemistry, conveying, for the steel industry, for the textile industry, for the food industry, for automotive applications, for the wood industry, for pharmaceutical applications, for railway application, for agricultural applications
Norms
DIN
Other characteristics
ATEX, flexible, reinforced, spiral wire, flameproof, abrasion-resistant, chemical-resistant, UV-resistant, with smooth inner surface, transparent, gas-tight, anti-static, microbe-resistant, vacuum, extruded, halogen-free
Inner diameter

Min.: 32 mm
(1.26 in)

Max.: 300 mm
(11.811 in)

Outer diameter

Min.: 42 mm
(1.654 in)

Max.: 317 mm
(12.48 in)

Pressure

Min.: 0.6 bar
(8.702 psi)

Max.: 4.85 bar
(70.343 psi)

Temperature

Min.: -40 °C
(-40 °F)

Max.: 90 °C
(194 °F)

Delivered length

Min.: 2.5 m
(8'02" )

Max.: 20 m
(65'07" )

Description

PU Transport hose & Suction Hose, highly abrasion resistant and vacuum proof, with reinforcement underneath the spiral, antistatic, microbe-resistant, hardly inflammable acc. to DIN 4102 B1 Type of construction - Profile extruded hose with metal spiral Material of the spiral - Spring steel Execution of the wall - made of pure material, made of specified material, extra reinforced wear zones, Addition of a non-migrating permanent antistatic agent, Wall thickness between the spirals approx. 2.0 mm Material of the wall - Polyether Polyurethane Specifications of the wall - Surface resistance RO < 109 Ohm, measured according to DIN EN ISO 8031, Material is more abrasion resistant than comparable polyether polyurethane according to DIN ISO 4649, flame retardant according to DIN 4102 B1 Properties Specifications of the product - Complies with DIN 26057, according to TRGS 727 and ATEX 2014/34 EU Chemical Properties - microbe-resistant, good UV resistance, halogen-free, good resistance to oil, good resistance to petrol, good ozone resistance, plasticiser-free Weight - heavy Pressure Resistance - very pressure resistant Other - high vacuum and peak pressure resistance, Configurable as a hose system with digital interface for compatibility with the AMPIUS® app
