Transport hose Master-PUR L Trivolution
for waterfor bulk materialspolyester

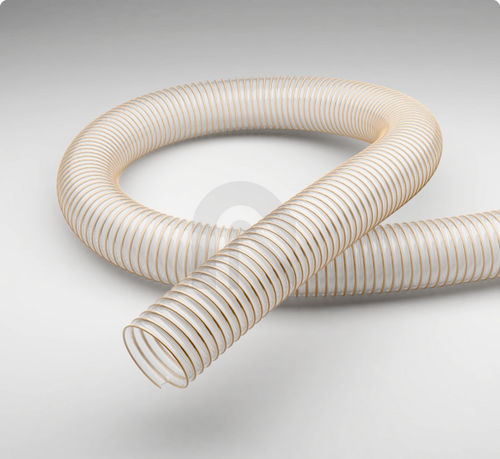

Transport hose - Master-PUR L Trivolution - Masterflex SE - for water / for bulk materials / polyester
Transport hose - Master-PUR L Trivolution - Masterflex SE - for water / for bulk materials / polyester
Transport hose - Master-PUR L Trivolution - Masterflex SE - for water / for bulk materials / polyester - image - 2
Transport hose - Master-PUR L Trivolution - Masterflex SE - for water / for bulk materials / polyester - image - 3
Transport hose - Master-PUR L Trivolution - Masterflex SE - for water / for bulk materials / polyester - image - 4
Add to favorites
Compare this product


Characteristics

Use
for water, for bulk materials
Material
polyester, PU
Applications
for automotive applications, suction, transport, for agricultural applications, for the plastics industry, for aerospace applications, for railway application, construction, cleaning, chemistry, for the textile industry, conveying, for food industry applications, for ventilation, air conditioning, for the paper industry, for the wood industry, for pharmaceutical applications, for the steel industry
Norms
DIN
Other characteristics
chemical-resistant, flexible, flameproof, abrasion-resistant, lightweight, oil-resistant, UV-resistant, standard, gas-tight, halogen-free, transparent, anti-static, small bend radius, spiral, microbe-resistant, ATEX, flame-retardant
Inner diameter

Min.: 25 mm
(0.984 in)

Max.: 500 mm
(19.685 in)

Outer diameter

Min.: 30 mm
(1.181 in)

Max.: 511 mm
(20.118 in)

Pressure

Min.: 0.13 bar
(1.885 psi)

Max.: 3.22 bar
(46.702 psi)

Temperature

Min.: -40 °C
(-40 °F)

Max.: 90 °C
(194 °F)

Delivered length

5 m, 10 m, 15 m, 20 m, 25 m
(16'04" , 32'09" , 49'02" , 65'07" , 82'00" )

Description

PU Suction hose & Transport Hose, extremely flexible, light duty, antistatic, microbe-resistant, hardly inflammable acc. to DIN 4102 B1 Construction / Material Spiral Design - made of steel wire Material of the spiral - Spring steel Execution of the wall - made of pure material, made of specified material, Wall thickness between the spirals approx. 0.7 mm Specifications of the wall - Surface resistance RO < 109 Ohm, measured according to DIN EN ISO 8031, Material is more abrasion resistant than comparable polyether polyurethane according to DIN ISO 4649, flame retardant according to DIN 4102 B1 Properties Specifications of the product - Complies with DIN 26057, according to TRGS 727 and ATEX 2014/34 EU Chemical Properties - microbe-resistant, halogen-free, good resistance to chemicals, good UV resistance, good resistance to oil, good resistance to petrol, good ozone resistance, plasticiser-free Physical Properties - permanently antistatic Pressure Resistance - moderately pressure resistant Other - Configurable as a hose system with digital interface for compatibility with the AMPIUS® app Delivery Information Delivery, type of production - Various nominal widths in standard lengths are available ex-production, individual nominal widths and lengths also ex-stock
