Anti-static hose Master-PUR L EL
for oilfor abrasive productsPU

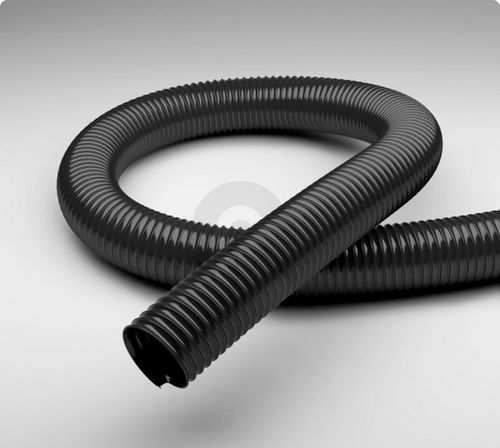

Anti-static hose - Master-PUR L EL - Masterflex SE - for oil / for abrasive products / PU
Anti-static hose - Master-PUR L EL - Masterflex SE - for oil / for abrasive products / PU
Anti-static hose - Master-PUR L EL - Masterflex SE - for oil / for abrasive products / PU - image - 2
Anti-static hose - Master-PUR L EL - Masterflex SE - for oil / for abrasive products / PU - image - 3
Anti-static hose - Master-PUR L EL - Masterflex SE - for oil / for abrasive products / PU - image - 4
Anti-static hose - Master-PUR L EL - Masterflex SE - for oil / for abrasive products / PU - image - 5
Add to favorites
Compare this product


Characteristics

Use
for oil, for abrasive products
Material
PU
Applications
transport, light-duty
Norms
DIN
Other characteristics
chemical-resistant, abrasion-resistant, oil-resistant, UV-resistant, anti-static, microbe-resistant, hydrolysis-resistant, electrically-conductive, ATEX, small bend radius, halogen-free, spiral wire, gas-tight
Inner diameter

Min.: 26 mm
(1.024 in)

Max.: 500 mm
(19.685 in)

Outer diameter

Min.: 31 mm
(1.22 in)

Max.: 511 mm
(20.118 in)

Pressure

Min.: 0.13 bar
(1.885 psi)

Max.: 3.22 bar
(46.702 psi)

Temperature

Min.: -40 °C
(-40 °F)

Max.: 90 °C
(194 °F)

Delivered length

5 m, 10 m, 15 m, 20 m, 25 m
(16'04" , 32'09" , 49'02" , 65'07" , 82'00" )

Description

PU Suction & Transport Hose, light duty, highly flexible, electroconductive Type of construction - Profile extruded hose with metal spiral Execution of the wall - made of electrically conductive material, Wall thickness between the spirals approx. 0.7 mm Specifications of the wall - Surface resistance RO < 10³ Ohm Properties Specifications of the product - Complies with DIN 26057, according to TRGS 727 and ATEX 2014/34 EU Chemical Properties - halogen-free, good resistance to chemicals, good UV resistance, good resistance to oil, good resistance to petrol, good ozone resistance Pressure Resistance - moderately pressure resistant Colour - black - Delivery Information Delivery, type of production - Various nominal widths in standard lengths are available ex-production, individual nominal widths and lengths also ex-stock Application Areas Areas of application - Agriculture, Industry, Bulk & Construction, Chemistry, Food & Pharma, Metal & Toolmaking Customizing Options optional item modification (on request) - other nominal widths, other colours, with customer-specific imprint

Catalogs

No catalogs are available for this product.

See all of Masterflex SE‘s catalogs
