Anti-static hose Master-VAC EL
for gasEVAsuction

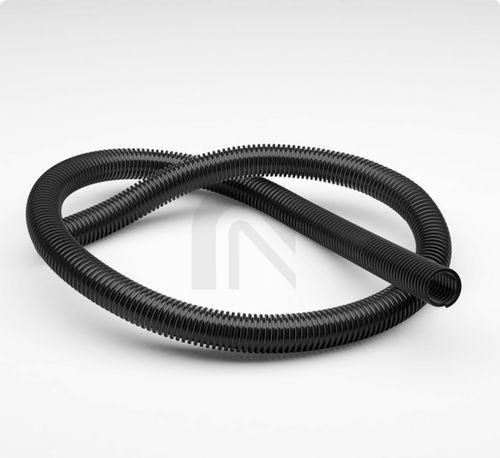

Anti-static hose - Master-VAC EL  - Masterflex SE - for gas / EVA / suction
Anti-static hose - Master-VAC EL  - Masterflex SE - for gas / EVA / suction
Anti-static hose - Master-VAC EL  - Masterflex SE - for gas / EVA / suction - image - 2
Anti-static hose - Master-VAC EL  - Masterflex SE - for gas / EVA / suction - image - 3
Add to favorites
Compare this product


Characteristics

Use
for gas
Material
EVA
Applications
suction, transport, cleaning
Other characteristics
lightweight, oil-resistant, UV-resistant, anti-static, crush-resistant, electrically-conductive, ATEX, vacuum
Inner diameter

Max.: 50 mm
(1.969 in)

Min.: 25 mm
(0.984 in)

Pressure

Max.: 0.74 bar
(10.733 psi)

Min.: 0.39 bar
(5.656 psi)

Temperature

Max.: 60 °C
(140 °F)

Min.: -40 °C
(-40 °F)

Delivered length

15 m, 20 m
(49'02" , 65'07" )

Description

PE-EVA Suction Hose & Transport Hose, lightweight, crush-resistant, electroconductive Execution of the wall - made of specified material Material of the wall - PE-EVA Co-polymer Specifications of the wall - Surface resistance RO < 10⁶ Ohm Properties Specifications of the product - RoHS-compliant Chemical Properties - good resistance to oil, good ozone resistance, good resistance to alkalis, good resistance to acids, good UV resistance Physical Properties - airtight, watertight, buoyant (spec. weight 0.94) Pressure Resistance - moderately pressure resistant Colour - black - Delivery Information Delivery, type of production - Various nominal widths in standard lengths are available ex-production, individual nominal widths and lengths also ex-stock Application Areas Areas of application - Waste disposal & cleaning technology Customizing Options optional item modification (on request) - other lengths, other nominal widths, with customer-specific imprint
