Bulk material hose Polderflex
for gasPVCsuction

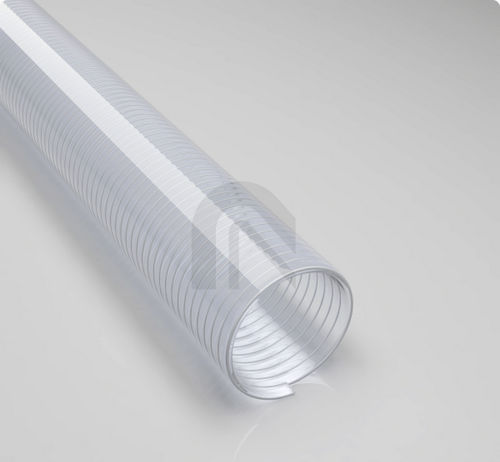

Bulk material hose - Polderflex - Masterflex SE - for gas / PVC / suction
Bulk material hose - Polderflex - Masterflex SE - for gas / PVC / suction
Bulk material hose - Polderflex - Masterflex SE - for gas / PVC / suction - image - 2
Bulk material hose - Polderflex - Masterflex SE - for gas / PVC / suction - image - 3
Bulk material hose - Polderflex - Masterflex SE - for gas / PVC / suction - image - 4
Add to favorites
Compare this product


Characteristics

Use
for bulk materials, for gas
Material
PVC
Applications
suction, transport, construction, cleaning, chemistry, for food industry applications, for pharmaceutical applications, for the plastics industry, for railway application
Other characteristics
flexible, chemical-resistant, oil-resistant, with smooth inner surface, microbe-resistant, hydrolysis-resistant, vacuum, transparent, flameproof, spiral
Inner diameter

Min.: 13 mm
(0.512 in)

Max.: 152 mm
(5.984 in)

Outer diameter

Min.: 19 mm
(0.748 in)

Max.: 170 mm
(6.693 in)

Pressure

Min.: 2 bar
(29.008 psi)

Max.: 9 bar
(130.534 psi)

Temperature

Min.: -20 °C
(-4 °F)

Max.: 70 °C
(158 °F)

Delivered length

20 m, 30 m, 50 m
(65'07" , 98'05" , 164'00" )

Description

PVC Suction Hose & Transport Hose, pressure & vacuum proof, cadmium-free, flexible Construction / Material Type of construction - Profile extruded hose with metal spiral Material of the spiral - Spring steel Execution of the wall - made of specified material, Wall thickness between the spirals approx. 3 - 10 mm, depending on DN Specifications of the wall - approved for direct food contact of categories A, B, C, E, according to EU Directive 1935/2004, 10/2011 and its latest amending Directives Properties Specifications of the product - Manufacturing process according to GMP EC 2023/2006 Chemical Properties - atoxic, physiologically harmless, good resistance to oil, good resistance to alkalis, good resistance to acids Weight - heavy Pressure Resistance - very pressure resistant Other - high vacuum and good pressure resistance - Delivery Information Delivery, type of production - Various nominal widths in standard lengths are available ex-production, individual nominal widths and lengths also ex-stock Application Areas Areas of application - Bulk & Construction, Sea & rail transport, Chemistry, Food & Pharma, Plastics, Vehicle construction Customizing Options optional item modification (on request) - other lengths, other nominal widths, with customer-specific imprint
