Gas hose Master-PVC FLEX PVCsuctiontransport
Add to favorites
Compare this product
Characteristics
- Use
- for gas
- Material
- PVC
- Applications
- suction, transport, construction, cleaning, conveying, for automotive applications, protection, air conditioning, for ventilation, for the textile industry
- Other characteristics
- flexible, chemical-resistant, lightweight, oil-resistant, with smooth inner surface, vacuum, reinforced, gas-tight, spiral wire
- Inner diameter
Min.: 25 mm
(0.984 in)Max.: 102 mm
(4.016 in)- Outer diameter
Min.: 30 mm
(1.181 in)Max.: 109 mm
(4.291 in)- Pressure
Min.: 0.8 bar
(11.603 psi)Max.: 1 bar
(14.504 psi)- Temperature
Min.: 0 °C
(32 °F)Max.: 70 °C
(158 °F)- Delivered length
10 m, 15 m
(32'09" , 49'02" )
Description

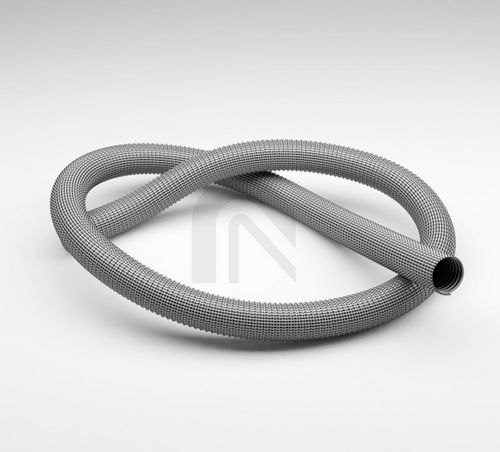

PVC suction hose / transport hose, very light, highly flexible, thread-reinforced
Construction / Material
Type of construction - extruded spiral hose
Material of the spiral - Spring steel
Execution of the wall - two-ply design with thread reinforcement
Properties
Specifications of the product - RoHS-compliant
Chemical Properties - good resistance to chemicals, good resistance to alkalis, good resistance to oil, good resistance to acids
Weight - medium heavy
Pressure Resistance - moderately pressure resistant
Colour - black
-
Delivery Information
Delivery, type of production - Various nominal widths in standard lengths are available ex-production, individual nominal widths and lengths also ex-stock
Application Areas
Areas of application - Automotive, Plant & Mechanical Engineering, Industry, Ventilation & air-conditioning, Waste disposal & cleaning technology, Conveying, lifting & feeding technology, Textile
Customizing Options
optional item modification (on request) - other lengths, other nominal widths, with customer-specific imprint
