Air hose Master-Clip SPARK
fiberglasslow-pressureair conditioning

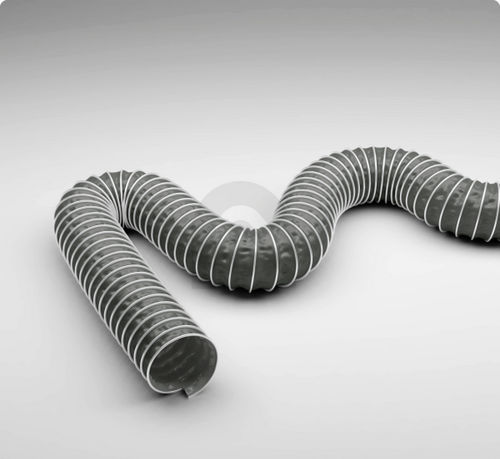

Air hose - Master-Clip SPARK  - Masterflex SE - fiberglass / low-pressure / air conditioning
Air hose - Master-Clip SPARK  - Masterflex SE - fiberglass / low-pressure / air conditioning
Air hose - Master-Clip SPARK  - Masterflex SE - fiberglass / low-pressure / air conditioning - image - 2
Air hose - Master-Clip SPARK  - Masterflex SE - fiberglass / low-pressure / air conditioning - image - 3
Air hose - Master-Clip SPARK  - Masterflex SE - fiberglass / low-pressure / air conditioning - image - 4
Add to favorites
Compare this product


Characteristics

Use
for air
Material
fiberglass
Applications
for fume extraction, for automotive applications, air conditioning, low-pressure, for ventilation, for the steel industry, for the textile industry
Other characteristics
flexible, lightweight, microbe-resistant, hydrolysis-resistant, flameproof, small bend radius, PVC-coated, spiral wire
Inner diameter

Min.: 40 mm
(1.575 in)

Max.: 900 mm
(35.433 in)

Pressure

Min.: 0.009 bar
(0.131 psi)

Max.: 0.9 bar
(13.053 psi)

Temperature

Min.: -20 °C
(-4 °F)

Max.: 90 °C
(194 °F)

Description

Special hose for welding fumes extraction, made from PVC-coated glass fabric Design of the helix - metal band, formed as a clamping profile Material of the helix - Steel strip, hot-dip galvanised Design of the external spiral - designed as an additional protective profile Execution of the wall - made of specified material, coated, Coating in PVC Material of the wall - Glass fibre fabric Properties Mechanical Properties - compressible approx. 1:6 Physical Properties - largely resistant to flying sparks Pressure Resistance - moderately pressure resistant Colour - dark grey short-term maximum temperature - peaks to +110° C Delivery Information Delivery, type of production - Order-related production Application Areas Areas of application - Automotive, Industry, Ventilation & air-conditioning, Textile, Metal & Toolmaking Customizing Options optional item modification (on request) - other lengths, other nominal widths, other colours, other spiral distance, with stainless steel spiral
