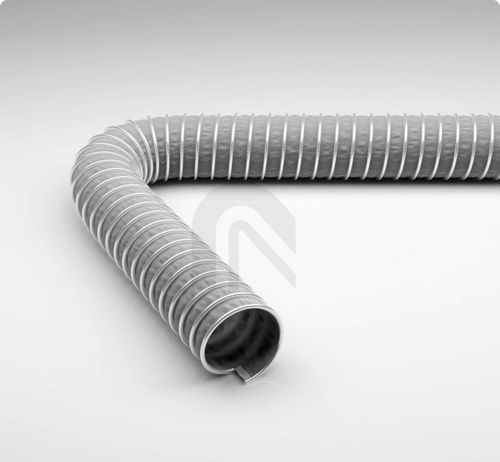

Exhaust gas hose Master-Clip HT 650

fabrichigh-temperaturefor automotive applications

Medium- and high temperature hose for temperatures up to +650°C Design of the helix - metal band, formed as a clamping profile Material of the helix - Steel strip, hot-dip galvanised Design of the external spiral - designed as an additional protective profile Execution of the wall - double-layered Design of the inner layer - reinforced by interwoven VA wire Material of the inner layer - High-temperature fabric Execution of the external layer - Coating with heat stabilisers Material of the outer layer - High temperature fabric Properties Weight - medium heavy Pressure Resistance - moderately pressure resistant Colour - silver grey Other - increased vacuum resistance due to woven-in reinforcing components short-term maximum temperature - peaks to +450° C flue gas temperature (peaks to +500° C), for proper use flue gas funnels are required and a sufficient supply of fresh air (approx. 50% based on the maximum specified temperature) Delivery Information Delivery, type of production - Order-related production Application Areas Areas of application - Automotive, Plant & Mechanical Engineering, Industry, Aerospace technology, Ventilation & air-conditioning, Printing & Paper, Metal & Toolmaking Customizing Options optional item modification (on request) - other lengths, other nominal widths, other colours, other spiral distance, with stainless steel spiral
