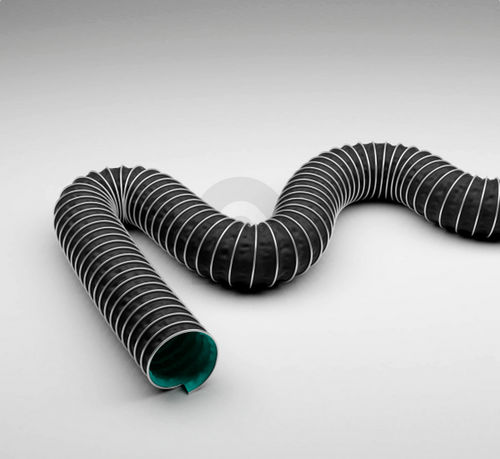

Exhaust gas hose Master-Clip HYPALON®
polyestersuctiontransport

Exhaust gas hose - Master-Clip HYPALON®  - Masterflex SE - polyester / suction / transport
Exhaust gas hose - Master-Clip HYPALON®  - Masterflex SE - polyester / suction / transport
Exhaust gas hose - Master-Clip HYPALON®  - Masterflex SE - polyester / suction / transport - image - 2
Exhaust gas hose - Master-Clip HYPALON®  - Masterflex SE - polyester / suction / transport - image - 3
Add to favorites
Compare this product


Characteristics

Use
for exhaust gas
Material
polyester
Applications
suction, transport, high-temperature, low-pressure, medium-temperature
Other characteristics
chemical-resistant, flexible, lightweight, UV-resistant, standard, microbe-resistant, hydrolysis-resistant, spiral wire, heat/cold-resistant, vibration-resistant, flameproof, small bend radius
Inner diameter

Min.: 38 mm
(1.496 in)

Max.: 900 mm
(35.433 in)

Pressure

Min.: 0.016 bar
(0.232 psi)

Max.: 0.94 bar
(13.634 psi)

Temperature

Min.: -40 °C
(-40 °F)

Max.: 175 °C
(347 °F)

Delivered length

3 m, 6 m, 10 m
(9'10" , 19'08" , 32'09" )

Description

Medium and high temperature hose for temperatures up to +175°C Design of the helix - metal band, formed as a clamping profile Material of the helix - Steel strip, hot-dip galvanised Design of the external spiral - designed as an additional protective profile Execution of the wall - coated, HYPALON® coating Material of the wall - Polyester fabric Properties Chemical Properties - very good resistance to chemicals, good ozone resistance, good UV resistance Mechanical Properties - compressible approx. 1:6 Pressure Resistance - moderately pressure resistant Colour - outside black, inside green short-term maximum temperature - peaks to +190 Delivery Information Application Areas Areas of application - Automotive, Plant & Mechanical Engineering, Industry, Semiconductor Industry, Ventilation & air-conditioning, Bulk & Construction, Sea & rail transport, Chemistry, Food & Pharma, Plastics, Conveying, lifting & feeding technology, Printing & Paper, Vehicle construction, Metal & Toolmaking Customizing Options optional item modification (on request) - other lengths, other nominal widths, other colours, other spiral distance, with stainless steel spiral
