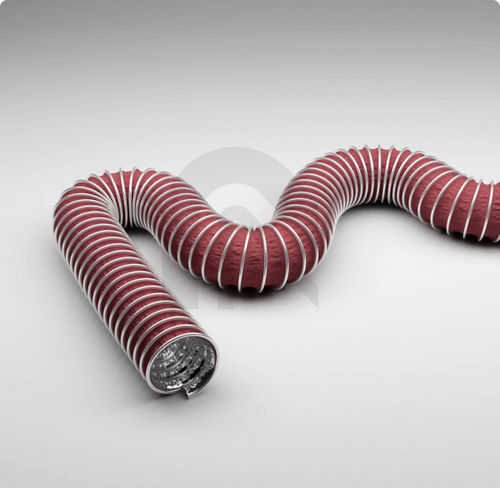

Exhaust gas hose Master-Clip HT 500 fabrichigh-temperaturelow-pressure
Add to favorites
Compare this product
Characteristics
- Use
- for exhaust gas
- Material
- fabric
- Applications
- high-temperature, for automotive applications, low-pressure, for ventilation, medium-temperature
- Other characteristics
- flexible, lightweight, heat/cold-resistant, vacuum, flameproof, small bend radius, spiral wire
- Inner diameter
Min.: 75 mm
(2.953 in)Max.: 900 mm
(35.433 in)- Pressure
Min.: 0.016 bar
(0.232 psi)Max.: 0.62 bar
(8.992 psi)- Temperature
Min.: -20 °C
(-4 °F)Max.: 500 °C
(932 °F)- Delivered length
3 m, 6 m, 10 m
(9'10" , 19'08" , 32'09" )
Description
Medium- and high temperature hose for temperatures up to +500°C
Design of the helix - metal band, formed as a clamping profile
Material of the helix - Steel strip, hot-dip galvanised
Design of the external spiral - designed as an additional protective profile
Execution of the wall - one side laminated
Material of the wall - High temperature fabric
Properties
Physical Properties - flame resistant, non-flammable
Pressure Resistance - moderately pressure resistant
Colour - inside silver, outside red
Other - good vacuum resistance, high gas tightness in the vacuum and low pressure range
Delivery Information
Delivery, type of production - Order-related production
Application Areas
Areas of application - Automotive, Ventilation & air-conditioning
Customizing Options
optional item modification (on request) - other lengths, other nominal widths, other colours, other spiral distance, with stainless steel spiral
Catalogs
No catalogs are available for this product.
See all of Masterflex SE‘s catalogsOther Masterflex SE products
Temperature Resistant Hoses up to +1100 °C
