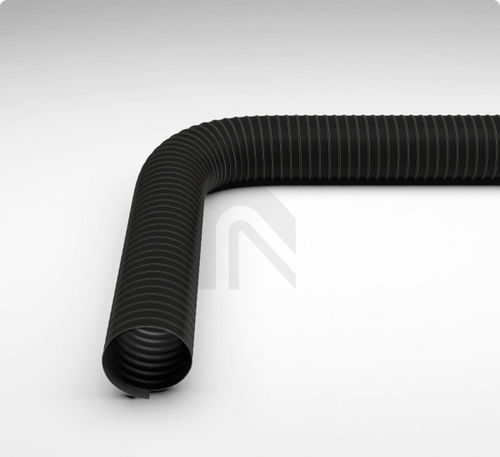

Exhaust gas hose Master-NEO 2
fiberglasshigh-temperaturemedium-temperature

Exhaust gas hose - Master-NEO 2 - Masterflex SE - fiberglass / high-temperature / medium-temperature
Exhaust gas hose - Master-NEO 2 - Masterflex SE - fiberglass / high-temperature / medium-temperature
Exhaust gas hose - Master-NEO 2 - Masterflex SE - fiberglass / high-temperature / medium-temperature - image - 2
Exhaust gas hose - Master-NEO 2 - Masterflex SE - fiberglass / high-temperature / medium-temperature - image - 3
Exhaust gas hose - Master-NEO 2 - Masterflex SE - fiberglass / high-temperature / medium-temperature - image - 4
Add to favorites
Compare this product


Characteristics

Use
for exhaust gas
Material
fiberglass
Applications
high-temperature, for the chemical industry, medium-temperature
Other characteristics
chemical-resistant, with smooth inner surface, vulcanized, double-layer, small bend radius, neoprene-coated, double-walled, spiral wire
Inner diameter

Max.: 305 mm
(12.008 in)

Min.: 13 mm
(0.512 in)

Pressure

Max.: 2.8 bar
(40.611 psi)

Min.: 0.3 bar
(4.351 psi)

Temperature

Max.: 135 °C
(275 °F)

Min.: -35 °C
(-31 °F)

Delivered length

4 m
(13'01" )

Description

Medium and high temperature hose for temperatures up to +135 °C, two layers Type of construction - single or multi-layer spiral hose made of vulcanized fabric strips Design of the inner layer - Coating of neoprene Material of the inner layer - glass fabric Execution of the external layer - Coating of neoprene Material of the outer layer - glass fabric Design of the cord - designed as twin cord Material of the cord - Glass fibre yarn Properties Pressure Resistance - pressure resistant Colour - black Delivery Information Delivery, type of production - Various nominal widths in standard lengths are available ex-production, individual nominal widths and lengths also ex-stock Application Areas Areas of application - Automotive, Plant & Mechanical Engineering, Industry, Aerospace technology, Ventilation & air-conditioning, Bulk & Construction, Sea & rail transport, Wood, Chemistry, Plastics, Conveying, lifting & feeding technology, Printing & Paper, Vehicle construction, Metal & Toolmaking Customizing Options optional item modification (on request) - other nominal widths, other colours, with customer-specific imprint
