Air hose Master-Clip VINYL Bpolyestersuctionfor chemical applications
Add to favorites
Compare this product
Characteristics
- Use
- for air
- Material
- polyester
- Applications
- suction, for chemical applications, air conditioning, low-pressure, for ventilation, for the plastics industry
- Other characteristics
- lightweight, rugged, small bend radius, PVC-coated, spiral wire
- Inner diameter
Max.: 900 mm
(35.433 in)Min.: 40 mm
(1.575 in)- Pressure
Max.: 0.93 bar
(13.489 psi)Min.: 0.016 bar
(0.232 psi)- Temperature
Max.: 70 °C
(158 °F)Min.: -20 °C
(-4 °F)- Delivered length
3 m, 6 m, 10 m
(9'10" , 19'08" , 32'09" )
Description

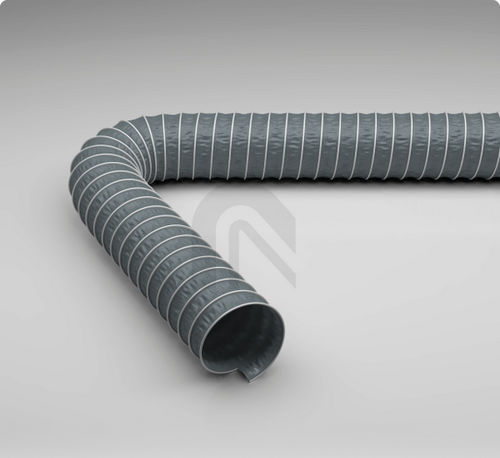

Suction & Blower Hose made from PVC-coated Polyester fabric, hardly inflammable
Design of the helix - metal band, formed as a clamping profile
Design of the external spiral - designed as an additional protective profile
Execution of the wall - made of specified material, coated, Coating in PVC
Properties
Mechanical Properties - compressible approx. 1:6
Pressure Resistance - moderately pressure resistant
Colour - grey
short-term maximum temperature - peaks to +80° C
Delivery Information
Delivery, type of production - Order-related production
Application Areas
Areas of application - Plant & Mechanical Engineering, Ventilation & air-conditioning, Chemistry, Plastics
Customizing Options
optional item modification (on request) - other lengths, other nominal widths, other colours, other spiral distance, with stainless steel spiral
