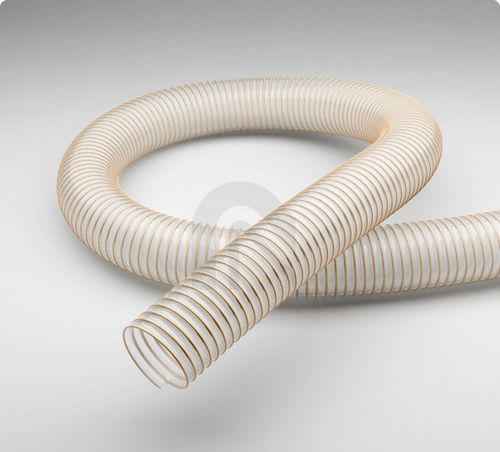

Anti-static hose Master-PUR L MHR A
for oilPUsuction

Anti-static hose - Master-PUR L MHR A - Masterflex SE - for oil / PU / suction
Anti-static hose - Master-PUR L MHR A - Masterflex SE - for oil / PU / suction
Anti-static hose - Master-PUR L MHR A - Masterflex SE - for oil / PU / suction - image - 2
Anti-static hose - Master-PUR L MHR A - Masterflex SE - for oil / PU / suction - image - 3
Anti-static hose - Master-PUR L MHR A - Masterflex SE - for oil / PU / suction - image - 4
Add to favorites
Compare this product


Characteristics

Use
for oil
Material
PU
Applications
suction, transport, light-duty
Norms
DIN
Other characteristics
abrasion-resistant, chemical-resistant, oil-resistant, UV-resistant, anti-static, microbe-resistant, hydrolysis-resistant, electrically-conductive, ATEX, halogen-free, spiral wire, small bend radius, gas-tight
Inner diameter

Min.: 26 mm
(1.024 in)

Max.: 500 mm
(19.685 in)

Outer diameter

Min.: 31 mm
(1.22 in)

Max.: 511 mm
(20.118 in)

Pressure

Min.: 0.13 bar
(1.885 psi)

Max.: 3.22 bar
(46.702 psi)

Temperature

Min.: -40 °C
(-40 °F)

Max.: 90 °C
(194 °F)

Delivered length

5 m, 10 m, 15 m, 20 m, 25 m
(16'04" , 32'09" , 49'02" , 65'07" , 82'00" )

Description

PU Suction & Transport Hose, light duty, highly flexible, microbe & hydrolysis-resistant, antistatic Type of construction - Profile extruded hose with metal spiral Execution of the wall - made of pure material, made of specified material, Addition of a non-migrating permanent antistatic agent, Wall thickness between the spirals approx. 0.7 mm Specifications of the wall - Surface resistance RO < 109 Ohm, measured according to DIN EN ISO 8031 Properties Specifications of the product - Complies with DIN 26057, according to TRGS 727 and ATEX 2014/34 EU Chemical Properties - microbe-resistant, halogen-free, good resistance to chemicals, good UV resistance, good resistance to oil, good resistance to petrol, good ozone resistance, hydrolysis resistant Physical Properties - permanently antistatic Pressure Resistance - moderately pressure resistant - Application Areas Areas of application - Agriculture, Industry, Aerospace technology, Bulk & Construction, Sea & rail transport, Food & Pharma, Waste disposal & cleaning technology, Textile, Printing & Paper, Vehicle construction Customizing Options optional item modification (on request) - other nominal widths, other colours, with customer-specific imprint

Catalogs

No catalogs are available for this product.

See all of Masterflex SE‘s catalogs
