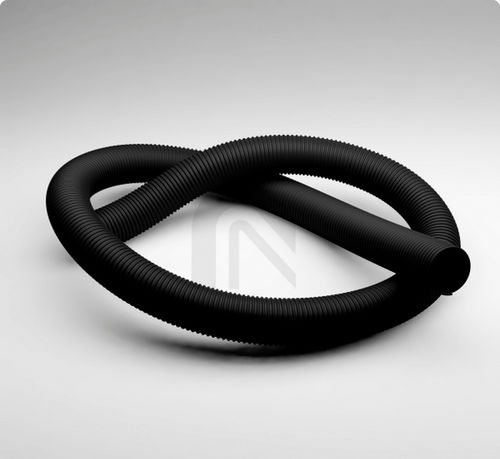

Anti-static hose Master-PE LF EL
for solventsfor gasfor steam

Anti-static hose - Master-PE LF EL - Masterflex SE - for solvents / for gas / for steam
Anti-static hose - Master-PE LF EL - Masterflex SE - for solvents / for gas / for steam
Anti-static hose - Master-PE LF EL - Masterflex SE - for solvents / for gas / for steam - image - 2
Anti-static hose - Master-PE LF EL - Masterflex SE - for solvents / for gas / for steam - image - 3
Anti-static hose - Master-PE LF EL - Masterflex SE - for solvents / for gas / for steam - image - 4
Add to favorites
Compare this product


Characteristics

Use
for solvents, for gas, for steam
Applications
suction
Other characteristics
flexible, chemical-resistant, lightweight, anti-static, electrically-conductive, ATEX, halogen-free, small bend radius, spiral wire
Inner diameter

Max.: 400 mm
(15.748 in)

Min.: 40 mm
(1.575 in)

Pressure

Max.: 0.45 bar
(6.527 psi)

Min.: 0.02 bar
(0.29 psi)

Temperature

Max.: 60 °C
(140 °F)

Min.: -40 °C
(-40 °F)

Delivered length

5 m, 10 m, 15 m, 20 m, 25 m
(16'04" , 32'09" , 49'02" , 65'07" , 82'00" )

Description

PE film/foil hose, lightweight, highly flexible, electroconductive Type of construction - Film hose with embedded support coil Execution of the wall - made of electrically conductive material, Foil thickness between the spirals approx. 0.5 mm Specifications of the wall - Surface resistance RO < 10⁴ Ohm Properties Specifications of the product - according to TRGS 727 and ATEX 2014/34 EU Chemical Properties - very good resistance to chemicals, good resistance to solvents, halogen-free, good resistance to aggressive vapours, plasticiser-free Pressure Resistance - moderately pressure resistant Colour - black - Delivery Information Delivery, type of production - Various nominal widths in standard lengths are available ex-production, individual nominal widths and lengths also ex-stock Application Areas Areas of application - Ventilation & air-conditioning, Chemistry Customizing Options optional item modification (on request) - other lengths, other nominal widths, with customer-specific imprint
