Anti-static hose Master-PVC LF ELfor gasPVCsuction
Add to favorites
Compare this product
Characteristics
- Use
- for gas
- Material
- PVC
- Applications
- suction, transport, transfer, for the chemical industry
- Other characteristics
- chemical-resistant, lightweight, oil-resistant, with smooth inner surface, anti-static, electrically-conductive, ATEX, small bend radius, spiral wire
- Inner diameter
Max.: 300 mm
(11.811 in)Min.: 50 mm
(1.969 in)- Outer diameter
Max.: 311 mm
(12.244 in)Min.: 57 mm
(2.244 in)- Pressure
Max.: 0.7 bar
(10.153 psi)Min.: 0.13 bar
(1.885 psi)- Temperature
Max.: 70 °C
(158 °F)Min.: -20 °C
(-4 °F)- Delivered length
5 m, 10 m, 15 m, 20 m, 25 m
(16'04" , 32'09" , 49'02" , 65'07" , 82'00" )
Description

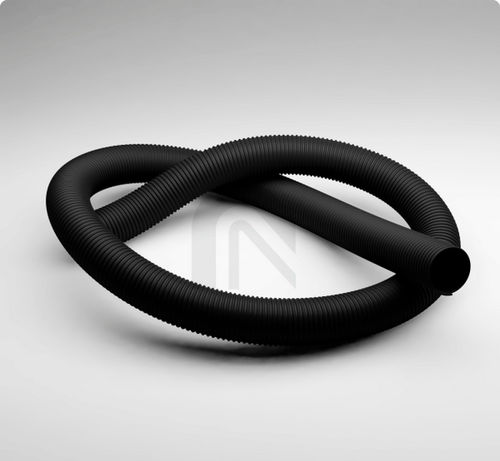

PVC Film/Foil Hose, lightweight, electroconductive
Type of construction - Film hose with embedded support coil
Execution of the wall - made of electrically conductive material, Wall thickness between the spirals approx. 0.5 mm
Specifications of the wall - Surface resistance RO < 10⁶ Ohm
Properties
Specifications of the product - according to TRGS 727 and ATEX 2014/34 EU
Chemical Properties - good resistance to oil, good resistance to chemicals, good resistance to alkalis, good resistance to acids
Pressure Resistance - moderately pressure resistant
Colour - black
-
Delivery Information
Delivery, type of production - Various nominal widths in standard lengths are available ex-production, individual nominal widths and lengths also ex-stock
Application Areas
Areas of application - Ventilation & air-conditioning, Chemistry
Customizing Options
optional item modification (on request) - other lengths, other nominal widths, with customer-specific imprint
