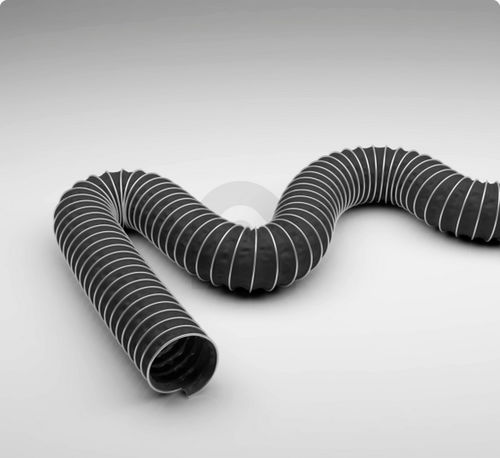

Suction & Blower hose made from PVC coated polyester fabric, electroconductive
Design of the helix - metal band, formed as a clamping profile
Material of the helix - Steel strip, hot-dip galvanised
Design of the external spiral - designed as an additional protective profile
Execution of the wall - made of electrically conductive material, coated, Coating in PVC
Specifications of the wall - Surface resistance RO < 10⁶ Ohm
Properties
Specifications of the product - according to TRGS 727 and ATEX 2014/34 EU
Chemical Properties - atoxic, physiologically harmless, odourless and tasteless, good resistance to aggressive vapours
Mechanical Properties - compressible approx. 1:6
Pressure Resistance - moderately pressure resistant
Colour - black
-
Delivery Information
Delivery, type of production - Order-related production
Application Areas
Areas of application - Ventilation & air-conditioning, Chemistry, Plastics
Customizing Options
optional item modification (on request) - other lengths, other nominal widths, other colours, other spiral distance, with stainless steel spiral
