Anti-static hose Master-Clip VITON EL
for gasgalvanised steelfabric

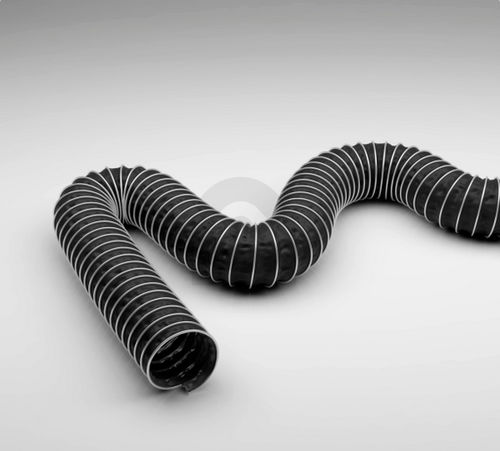

Anti-static hose - Master-Clip VITON EL - Masterflex SE - for gas / galvanised steel / fabric
Anti-static hose - Master-Clip VITON EL - Masterflex SE - for gas / galvanised steel / fabric
Anti-static hose - Master-Clip VITON EL - Masterflex SE - for gas / galvanised steel / fabric - image - 2
Anti-static hose - Master-Clip VITON EL - Masterflex SE - for gas / galvanised steel / fabric - image - 3
Add to favorites
Compare this product


Characteristics

Use
for gas
Material
galvanised steel, fabric, polyester, Viton®
Applications
suction, for the chemical industry, exhaust, low-pressure, medium temperature
Other characteristics
UV-resistant, chemical-resistant, lightweight, anti-static, electrically-conductive, ATEX, heat/cold-resistant, vibration-resistant, rugged, small bend radius, coated, spiral wire
Inner diameter

Min.: 38 mm
(1.496 in)

Max.: 900 mm
(35.433 in)

Pressure

Min.: 0.016 bar
(0.232 psi)

Max.: 0.94 bar
(13.634 psi)

Temperature

Min.: -25 °C
(-13 °F)

Max.: 210 °C
(410 °F)

Delivered length

3 m, 6 m, 10 m
(9'10" , 19'08" , 32'09" )

Description

Suction & Blower hose made from VITON-coated Polyester fabric, for corrosive media up to +210 °C, electroconductive Design of the helix - metal band, formed as a clamping profile Material of the helix - Steel strip, hot-dip galvanised Design of the external spiral - designed as an additional protective profile Execution of the wall - made of electrically conductive material, coated, Coating in Viton® Material of the wall - Polyester fabric Specifications of the wall - Surface resistance RO < 10⁴ Ohm Properties Specifications of the product - according to TRGS 727 and ATEX 2014/34 EU Chemical Properties - very good resistance to chemicals, good UV resistance, good ozone resistance Mechanical Properties - compressible approx. 1:6 Pressure Resistance - moderately pressure resistant Colour - black - Delivery Information Delivery, type of production - Order-related production Application Areas Areas of application - Ventilation & air-conditioning, Chemistry, Surface Technology Customizing Options optional item modification (on request) - other lengths, other nominal widths, other colours, other spiral distance, with stainless steel spiral
