Anti-static hose Master-Clip PTFE EL
for gasfor steamfor corrosive fluids

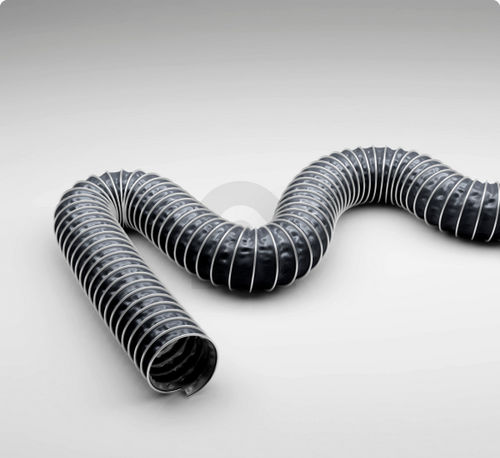

Anti-static hose - Master-Clip PTFE EL - Masterflex SE - for gas / for steam / for corrosive fluids
Anti-static hose - Master-Clip PTFE EL - Masterflex SE - for gas / for steam / for corrosive fluids
Anti-static hose - Master-Clip PTFE EL - Masterflex SE - for gas / for steam / for corrosive fluids - image - 2
Anti-static hose - Master-Clip PTFE EL - Masterflex SE - for gas / for steam / for corrosive fluids - image - 3
Add to favorites
Compare this product


Characteristics

Use
for gas, for steam, for corrosive fluids
Material
PTFE
Applications
suction, transfer, for the chemical industry, exhaust, low-pressure, for the pharmaceutical industry
Other characteristics
anti-static, chemical-resistant, lightweight, weather-resistant, spiral wire, heat-resistant, electrically-conductive, ATEX, non-adhesive, small bend radius, multilayer
Inner diameter

Max.: 900 mm
(35.433 in)

Min.: 55 mm
(2.165 in)

Pressure

Max.: 0.58 bar
(8.412 psi)

Min.: 0.01 bar
(0.145 psi)

Temperature

Max.: 280 °C
(536 °F)

Min.: -150 °C
(-238 °F)

Delivered length

3 m, 6 m, 10 m
(9'10" , 19'08" , 32'09" )

Description

Suction & Blower hose for corrosive media up to +280°C, electroconductive Design of the helix - metal band, formed as a clamping profile Material of the helix - Steel strip, hot-dip galvanised Design of the external spiral - designed as an additional protective profile Execution of the wall - made of electrically conductive material, Multi-layered design Material of the wall - PTFE laminate Specifications of the inner layer - Surface resistance RO < 10⁶ Ohm Properties Specifications of the product - according to TRGS 727 and ATEX 2014/34 EU Chemical Properties - good resistance to chemicals, weather-resistant Mechanical Properties - compressible approx. 1:6 Physical Properties - Heat-resistant, cold-resistant Pressure Resistance - moderately pressure resistant Colour - black Other - optimal transport of media because the inside of the hose wall is anti-adhesive - Delivery Information Delivery, type of production - Order-related production Application Areas Areas of application - Industry, Semiconductor Industry, Ventilation & air-conditioning, Chemistry, Surface Technology, Conveying, lifting & feeding technology, Metal & Toolmaking Customizing Options optional item modification (on request) - other lengths, other nominal widths, other colours, other spiral distance, with stainless steel spiral
