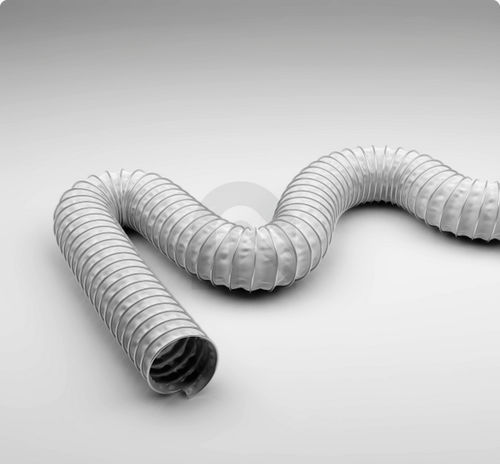

Gas hose Master-Clip fiberglasssiliconehigh-temperature
Add to favorites
Compare this product
Characteristics
- Use
- for gas
- Material
- silicone, fiberglass
- Applications
- high-temperature, low-pressure, medium-temperature
- Other characteristics
- lightweight, UV-resistant, heat/cold-resistant, vibration-resistant, small bend radius, silicone-coated, spiral, spiral wire
- Inner diameter
Max.: 900 mm
(35.433 in)Min.: 50 mm
(1.969 in)- Pressure
Max.: 0.88 bar
(12.763 psi)Min.: 0.009 bar
(0.131 psi)- Temperature
Max.: 300 °C
(572 °F)Min.: -60 °C
(-76 °F)- Delivered length
10 m, 15 m
(32'09" , 49'02" )
Description
Design of the helix - metal band, formed as a clamping profile
Material of the helix - Steel strip, hot-dip galvanised
Design of the external spiral - designed as an additional protective profile
Execution of the wall - made of specified material, coated, Coating in silicone, single layer executed
Material of the wall - Glass fibre fabric
Properties
Chemical Properties - good UV resistance, good ozone resistance
Mechanical Properties - compressible approx. 1:6
Pressure Resistance - moderately pressure resistant
Colour - silver grey
short-term maximum temperature - peaks to +350° C
Delivery Information
Delivery, type of production - Order-related production
Application Areas
Areas of application - Aerospace technology, Ventilation & air-conditioning, Sea & rail transport, Vehicle construction
Customizing Options
optional item modification (on request) - other lengths, other nominal widths, other colours, other spiral distance, with stainless steel spiral
