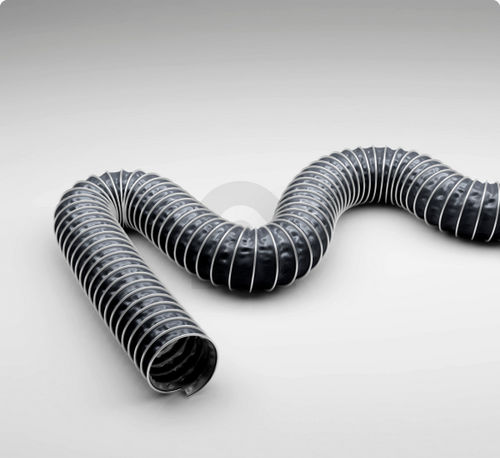

Paint hose Master-Clip PTFE EL

for gasfor corrosive fluidsPTFE

Suction & Blower hose for corrosive media up to +280°C, electroconductive Design of the helix - metal band, formed as a clamping profile Material of the helix - Steel strip, hot-dip galvanised Design of the external spiral - designed as an additional protective profile Execution of the wall - made of electrically conductive material, Multi-layered design Material of the wall - PTFE laminate Specifications of the inner layer - Surface resistance RO < 10⁶ Ohm Properties Specifications of the product - according to TRGS 727 and ATEX 2014/34 EU Chemical Properties - good resistance to chemicals, weather-resistant Mechanical Properties - compressible approx. 1:6 Physical Properties - Heat-resistant, cold-resistant Pressure Resistance - moderately pressure resistant Colour - black Other - optimal transport of media because the inside of the hose wall is anti-adhesive short-term maximum temperature - peaks to +300° C Delivery Information Delivery, type of production - Order-related production Application Areas Areas of application - Industry, Semiconductor Industry, Ventilation & air-conditioning, Chemistry, Surface Technology, Conveying, lifting & feeding technology, Metal & Toolmaking Customizing Options optional item modification (on request) - other lengths, other nominal widths, other colours, other spiral distance, with stainless steel spiral
