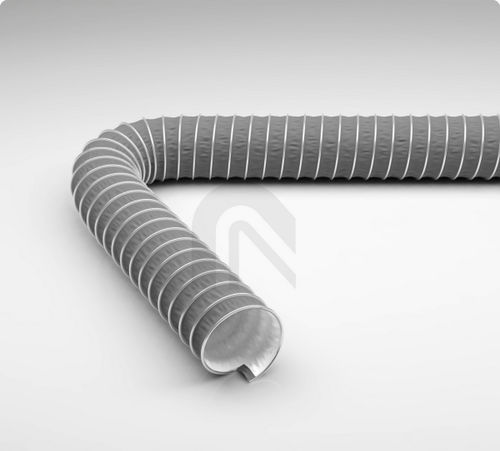

Solvent hose Master-Clip PTFE S

for corrosive fluidsPTFEsuction

Suction and blower hose for corrosive media up to +250°C Design of the helix - metal band, formed as a clamping profile Material of the helix - Steel strip, hot-dip galvanised Design of the external spiral - designed as an additional protective profile Execution of the wall - multi-layered and coated Material of the inner layer - PTFE foil Execution of the external layer - Coating in silicone Material of the outer layer - glass fabric Properties Chemical Properties - good resistance to chemicals, weather-resistant, good ozone resistance, good UV resistance Mechanical Properties - compressible approx. 1:4 Physical Properties - Heat-resistant, cold-resistant Pressure Resistance - moderately pressure resistant Colour - white inside, black outside Other - the material PTFE is harmless to health, optimal transport of media because the inside of the hose wall is anti-adhesive short-term maximum temperature - peaks to +270° C Delivery Information Delivery, type of production - Order-related production Application Areas Areas of application - Plant & Mechanical Engineering, Ventilation & air-conditioning, Chemistry, Surface Technology, Plastics, Metal & Toolmaking Customizing Options optional item modification (on request) - other lengths, other nominal widths, other colours, other spiral distance, with stainless steel spiral
