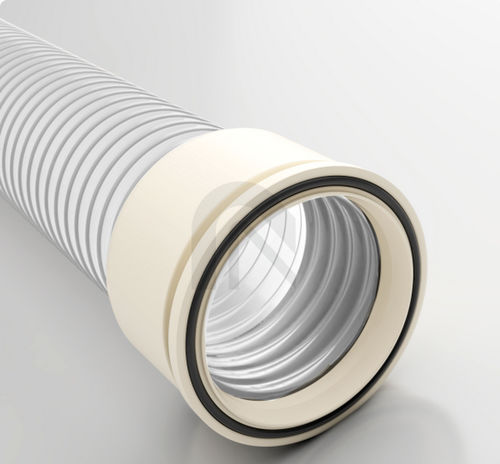

Hose flange Combiflex PU
plasticshock-proof

Hose flange - Combiflex PU - Masterflex SE - plastic / shock-proof
Hose flange - Combiflex PU - Masterflex SE - plastic / shock-proof
Hose flange - Combiflex PU - Masterflex SE - plastic / shock-proof - image - 2
Add to favorites
Compare this product


Characteristics

Applications
for hoses
Material
plastic
Other characteristics
shock-proof
Nominal diameter

Min.: 50 mm
(1.97 in)

Max.: 200 mm
(7.87 in)

Description

fixed quick connector system for all Master-PUR Food hose types, following DIN 3016, food-safe EU 10/2011 Description, addition to product name - fixed quick connector system for all Master-PUR Food hose types, following DIN 3016, food-safe EU 10/2011 Construction / Material Specification of the connection solution - Conical flange coupling system suitable for spigots according to DIN 3016, Connection option without cross-section narrowing Execution of the sprue / collar - made of specified material Material of the sprue / collar - Polyurethane Specification of the sprue / collar - approved for direct food contact according to EU Directive 1935/2004, 10/2011 and its latest amending Directives, Material complies with the food regulations of BfR XXXIX Design of the flange - Designed as a tapered flange Properties Chemical Properties - microbe-resistant, hydrolysis resistant Colour - white Other - Dissipation of electrostatic charge due to integrated earthing plate, easy to install due to the use of quick-release clamps Operating Temperature Temperature Range - -40 to 90 °C short-term maximum temperature - peaks to +125° C Delivery Information Delivery, type of production - Various nominal widths are available ex production, individual nominal widths also ex stock
